Ricoh Aficio MP C2030 Service Manual

Motors
SM 5 D429
D429 Internal
Finisher
Type C2550
1.2 MOTORS

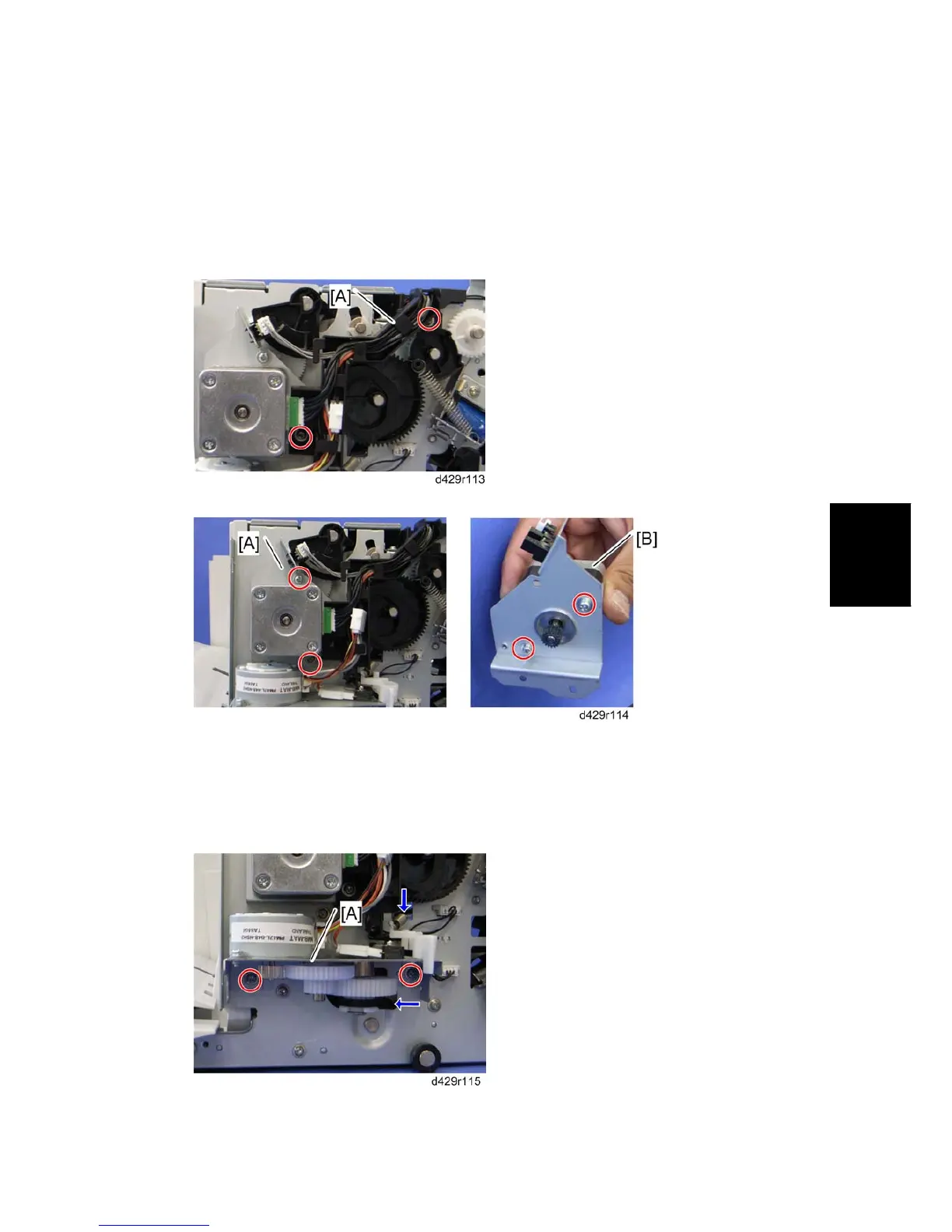

1.2.1 PICK-UP ROLLER CONTACT MOTOR
1. Front cover ( Front Cover)
2. Loosen the harness guide [A] ( x 2)
3. Bracket with pick-up roller contact motor [A] ( x 2,  x 1)
4. Pick-up roller contact motor [B] ( x 2)
1.2.2 STAPLER UNIT MOVEMENT MOTOR
1. Front cover ( Front Cover)
