Fusing
D037/D038/D040/D041 4-92 SM

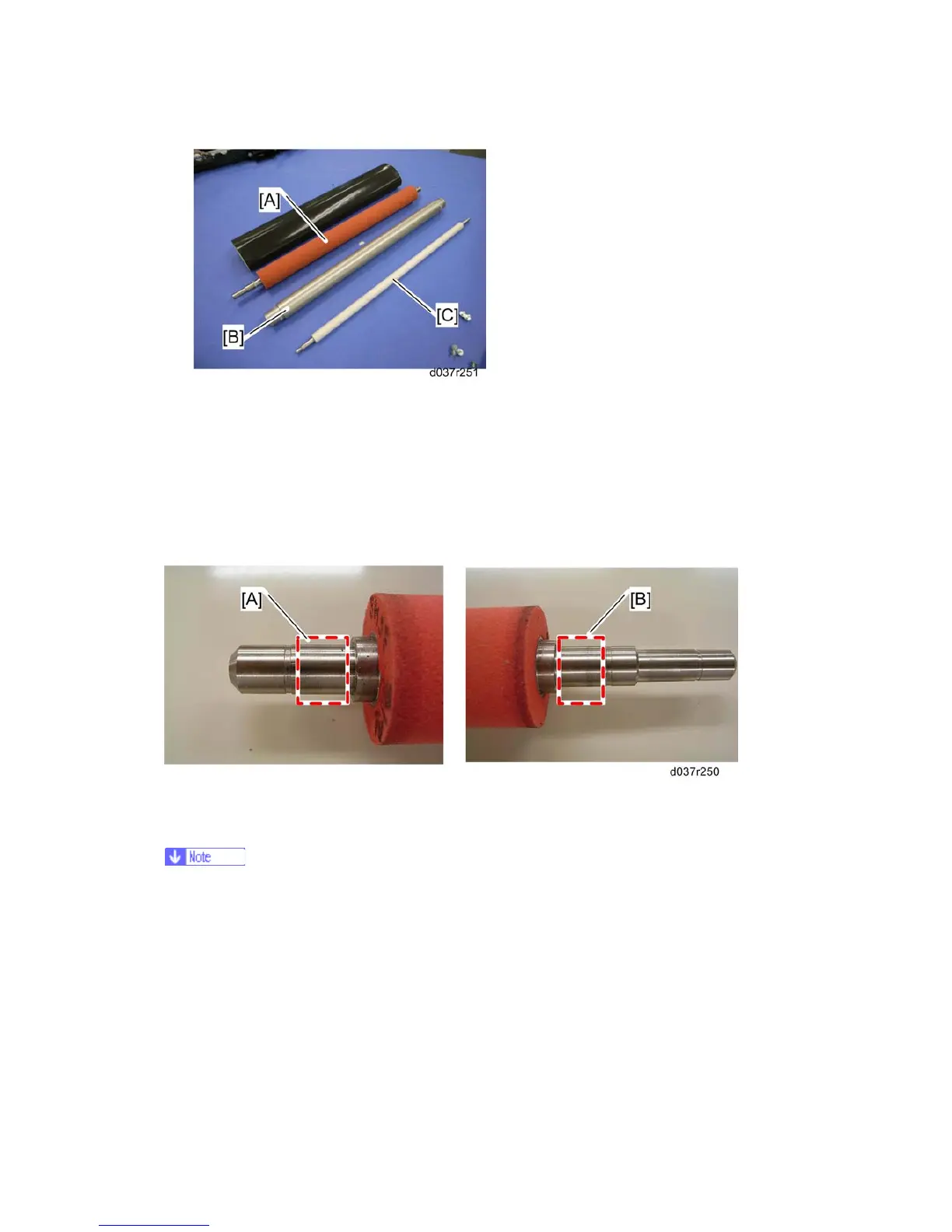

2. Fusing roller [A]
3. Heating roller [B]
4. Tension roller [C]
When reinstalling the fusing roller
When replacing the fusing roller, you have to apply lubricant to the following places.
Fusing Roller
Apply "Barrierta S552R" to the area [A] at the front side of the fusing roller.
Apply "Barrierta S552R" to the area [B] at the rear side of the fusing roller.
Do not apply lubricant to areas other than the areas [A] and [B] as shown above.
4.11.10 PRESSURE ROLLER
1. Fusing belt with rollers ( Section: Fusing Belt)
2. Pressure roller fusing lamp ( Section: Pressure Roller Fusing Lamp)
