Copier Installation

SM 2-11 D037/D038/D040/D041

Installaion

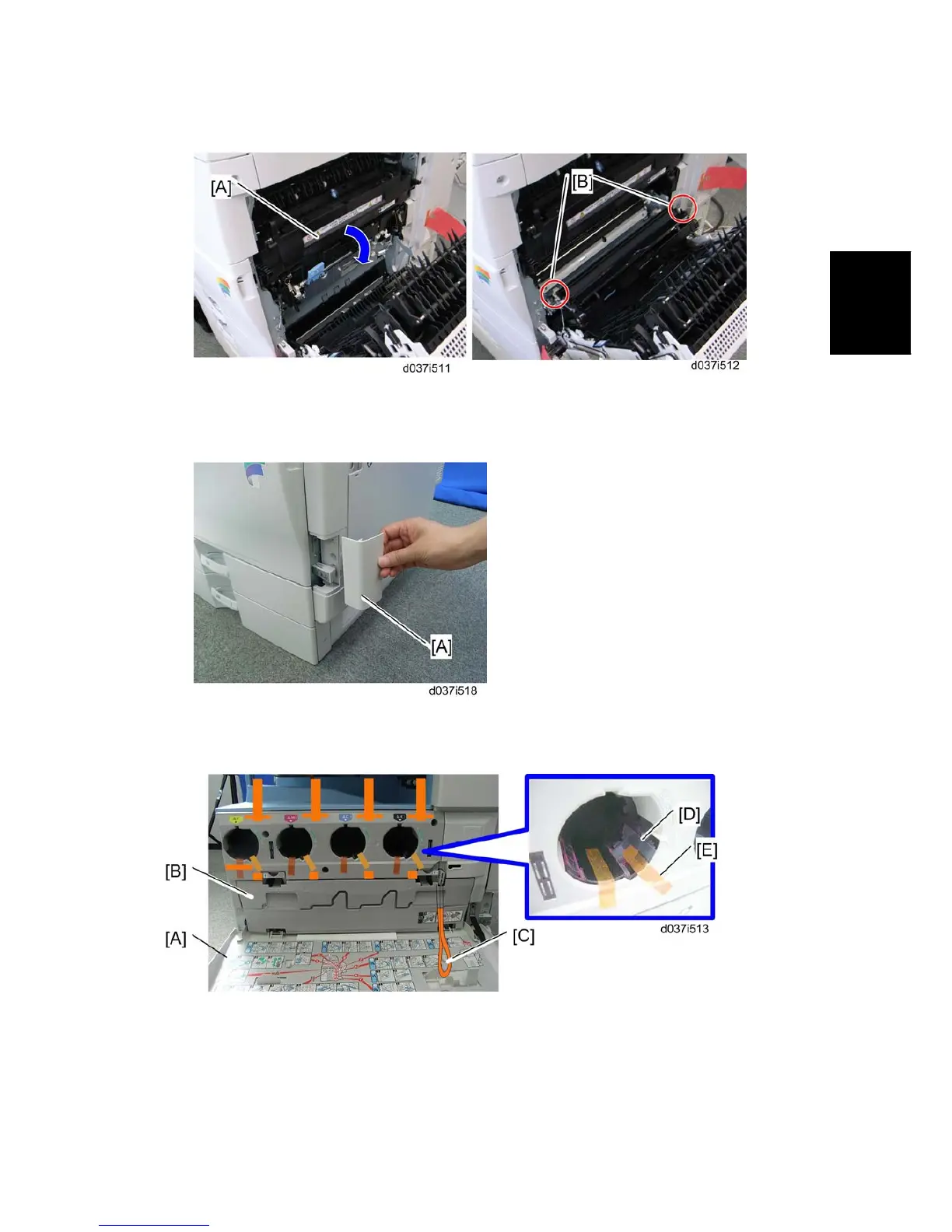

8. Open the paper transfer unit [A].

9. Remove the front and rear stoppers [B] with a red tag.

10. Close the duplex unit.

11. Attach the handle cover [A] to the front side of the duplex unit.

Developer and Toner Bottles

1. Open the front door [A] and remove the PCDU toner collection bottle [B].

2. Remove all tapes except the tape [C] from the four development units and from the

toner hopper units.
