Copier Installation
D037/D038/D040/D041 2-12 SM
 Do not remove the tape [C] at this moment. You will find how to remove this
tape later.
 The toner hopper cover [D] is removed with tape [E].
 Make sure that the all toner hopper covers are removed, when removing all
tapes.

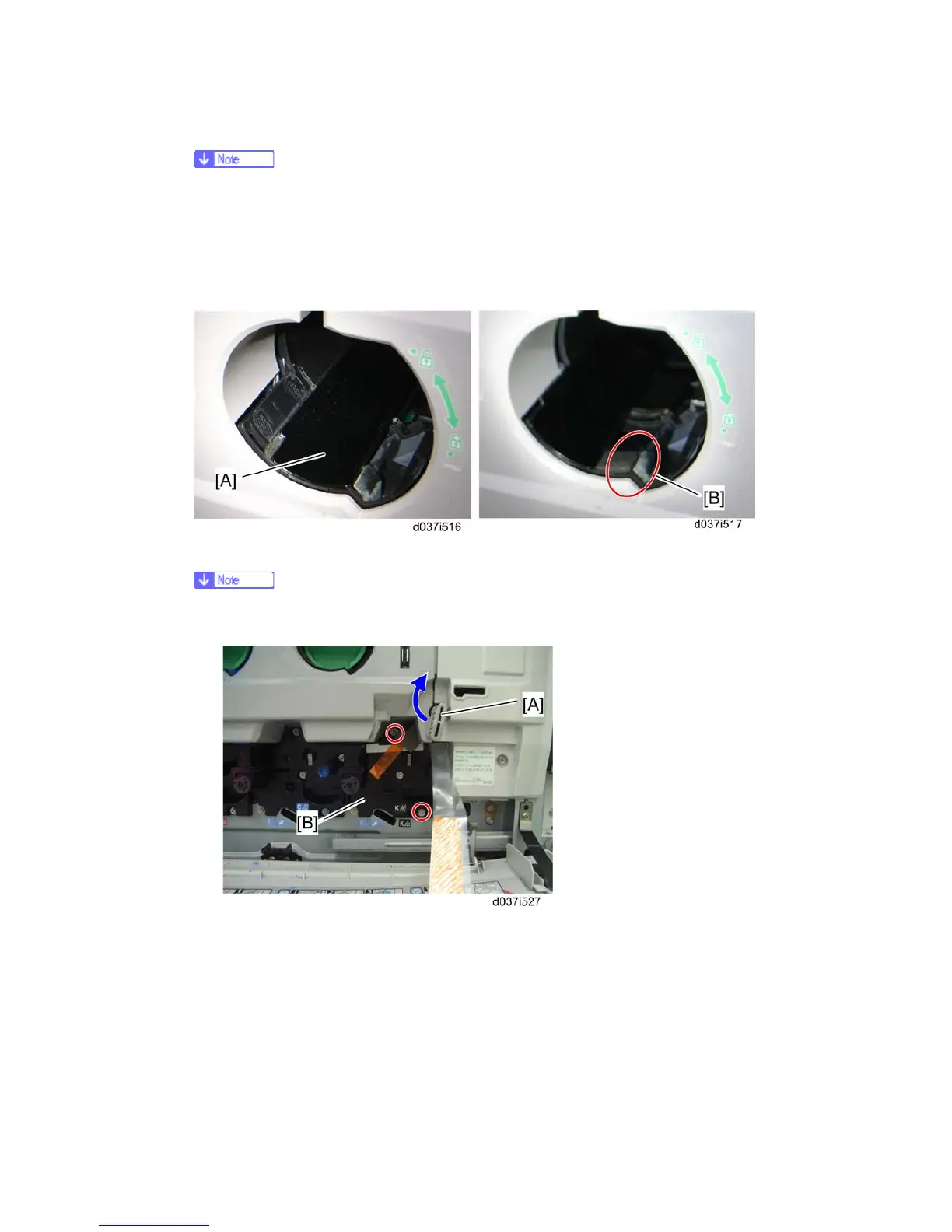

3. Check if the toner hopper shutter [A] is fully closed.
 If the toner hopper shutter is not fully closed and the inlet [B] of the toner
hopper unit is visible, the toner bottle cannot be installed properly.
4. Press the ITB lock lever [A] and turn it up as shown above.
5. Remove the black PCDU [B] ( x 2).
To Next Page
