Ricoh Aficio MP C2030 Service Manual

Sensors and Board
SM 5 D425
D425
Paper Feed
Unit PB3070
1.3 SENSORS AND BOARD
 Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

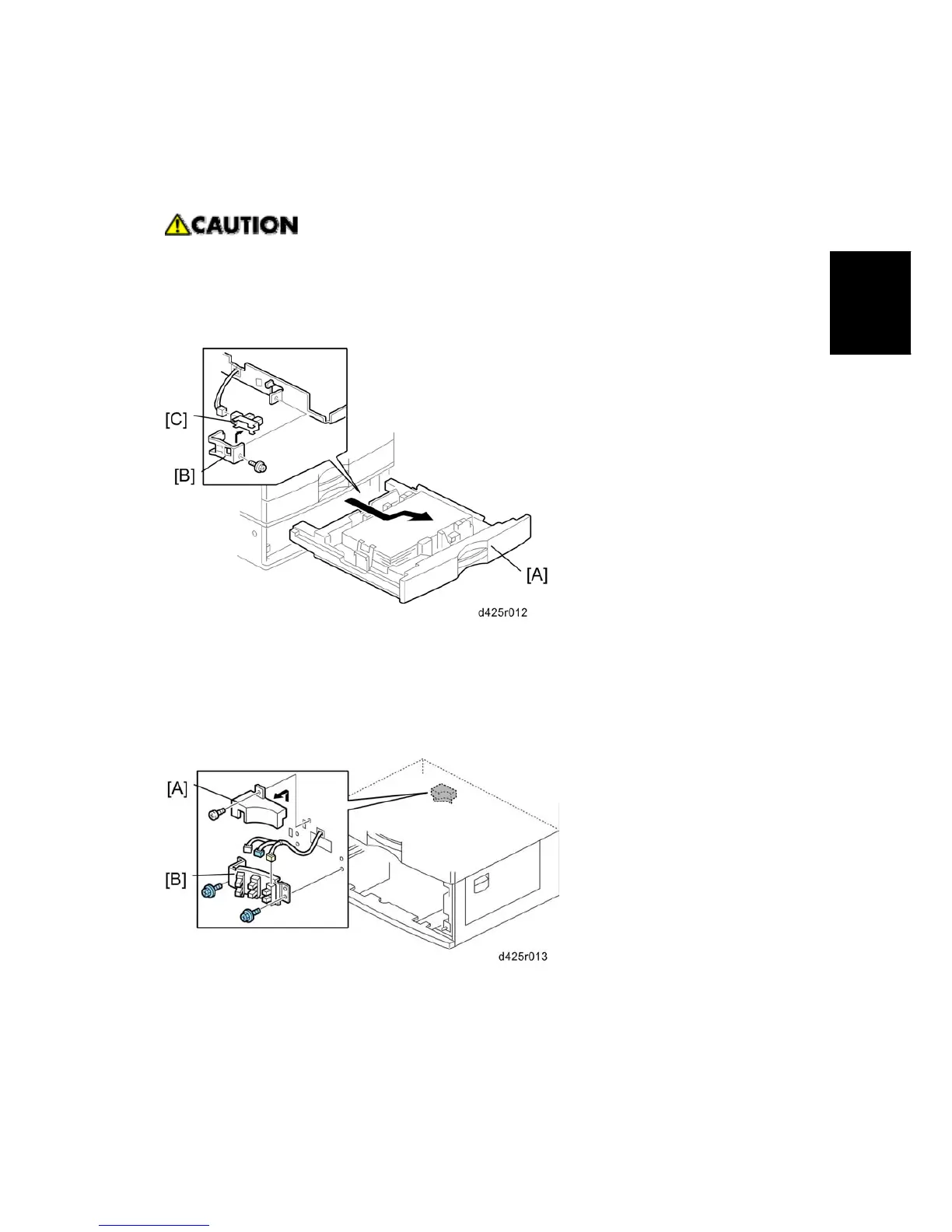

1.3.1 PAPER END SENSOR
1. Pull out the tray [A]
2. Sensor bracket [B] ( x 1,  x 1)
3. Paper end sensor [C] (hooks)
1.3.2 PAPER SIZE SENSORS
1. Pull out the tray.
2. Sensor bracket cover [A] ( x 1)
3. Sensor bracket [B] ( x 3,  x 2)
4. Paper size sensor (hooks)
