Drive Unit
SM 4-73 D037/D038/D040/D041
Replacement
& Adjustment
4.10 DRIVE UNIT

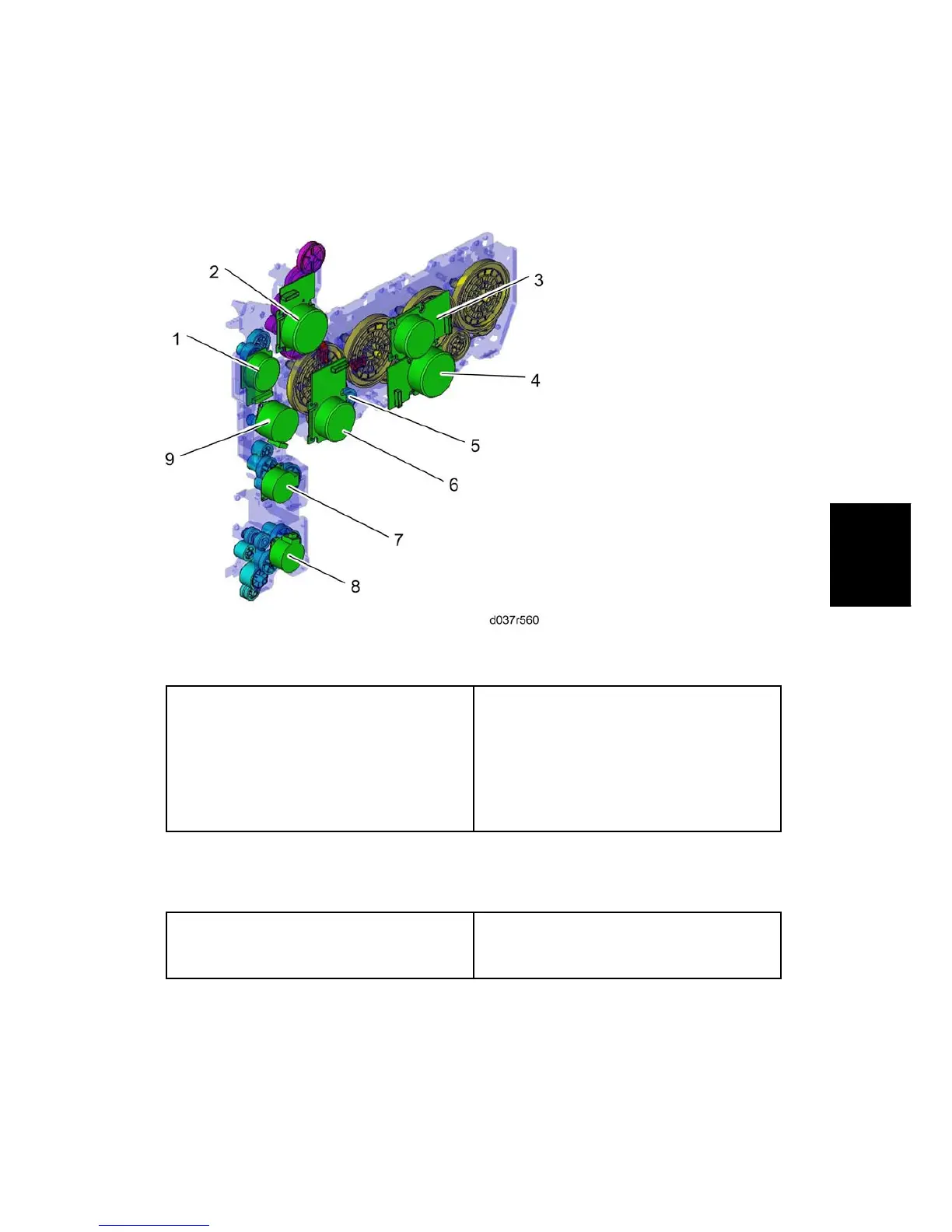

The drawing above shows the drive unit layout.
1. ITB drive motor
2. Fusing/paper exit motor
3. Drum motor: CMY
4. Development motor: CMY
5. Development clutch: K
6. Drum/Development motor: K
7. Paper feed motor: T1
8. Paper feed motor: T2
9. Registration motor
There are some motors and clutches that are not shown in the above drawing:
Duplex inverter motor
Duplex Entrance Motor
Duplex Exit Motor
By-pass Motor
4.10.1 GEAR UNIT
1. Rear cover ( Section: Rear Cover)
2. Rear lower cover ( Section: Rear Lower Cover)
