Ricoh Aficio MP C2030 Service Manual

Covers and Roller
SM 1 D425
D425
Paper Feed
Unit PB3070
1. REPLACEMENT AND ADJUSTMENT
1.1 COVERS AND ROLLER
1.1.1 COVERS

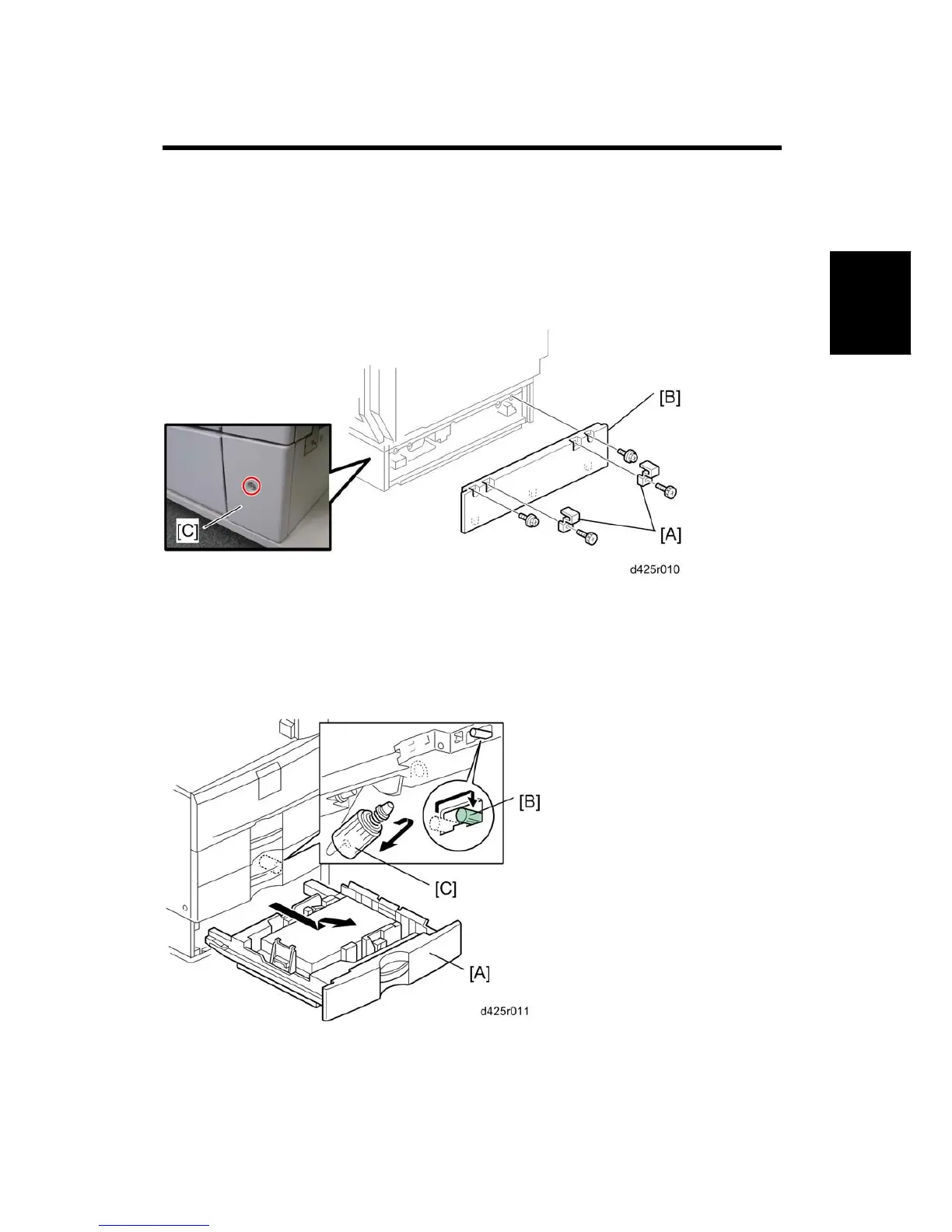

1. Securing brackets [A] ( x 1 each)
2. Rear cover [B] ( x 2)
3. Rear right cover [C] ( x 1)
1.1.2 FEED ROLLER
1. Pull out the tray [A]
2. Release the lock lever [B]
3. Feed roller [C]
