Ricoh Aficio MP C2030 Service Manual

Exterior Covers
D037/D038/D040/D041 4-22 SM

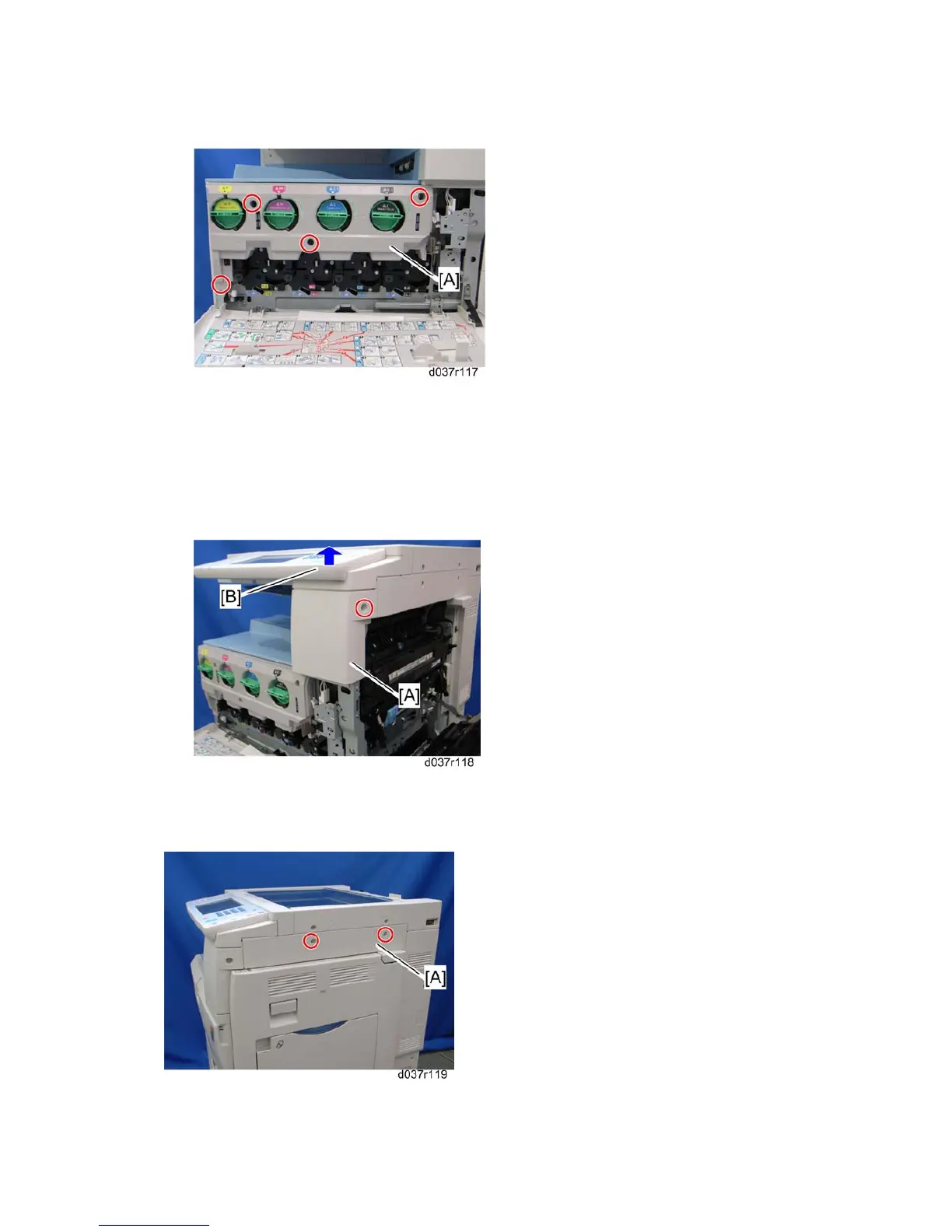

3. Inner cover [A] ( x 4)
4.4.13 FRONT RIGHT COVER
1. Open the duplex unit.
1. PCDU toner collection bottle ( Section: PCDU Toner Collection Bottle)
1. Inner right cover ( Section: Inner Right Cover)
2. Remove the front right cover [A] with the operation panel [B] lifted up ( x 1).
4.4.14 RIGHT UPPER COVER
1. Right upper cover [A] ( x 2)
