Ricoh Aficio MP C2030 Service Manual

Duplex Unit
D037/D038/D040/D041 4-116 SM

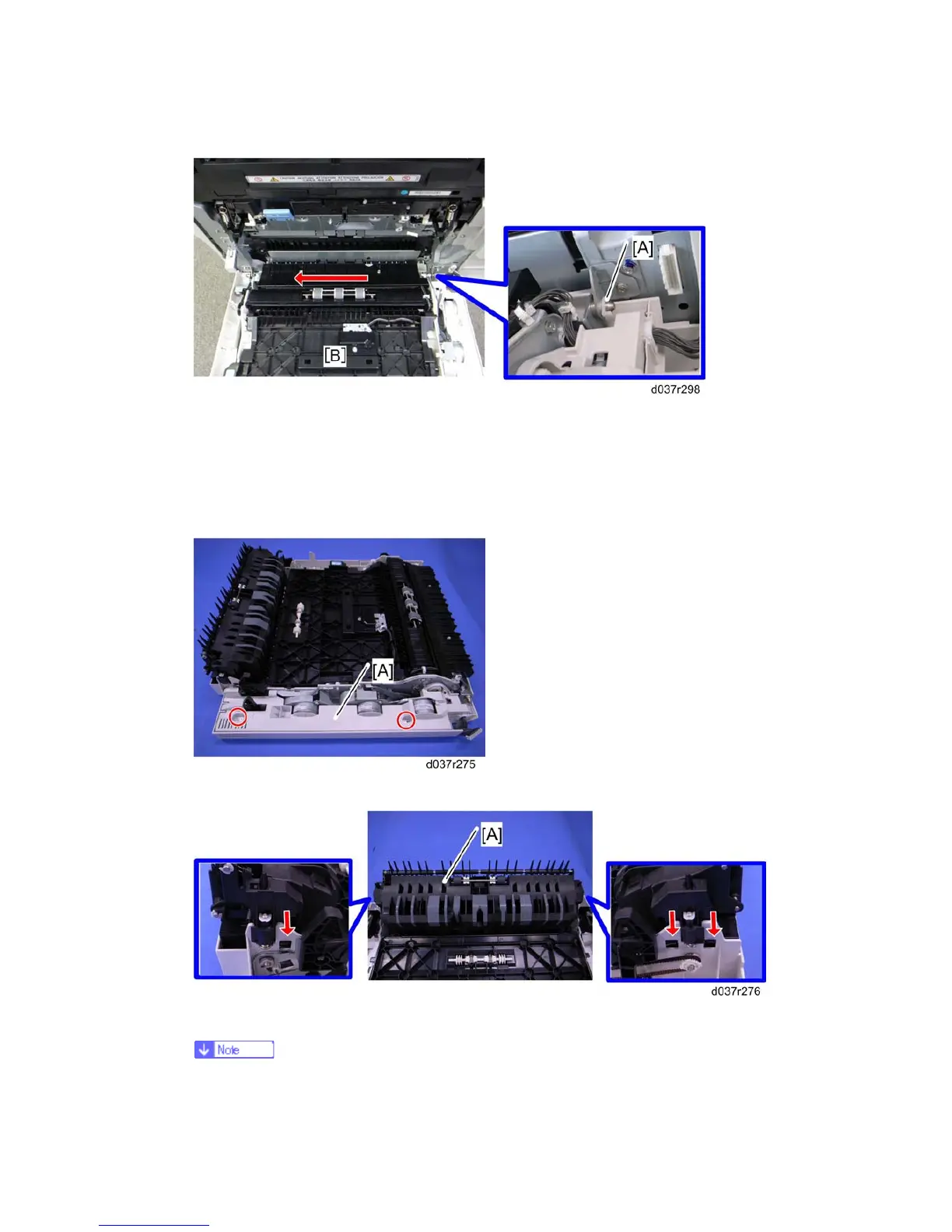

6. Remove the clip [A].
7. Slide the duplex unit [B] to the front side, and then remove it.
4.14.2 DUPLEX ENTRANCE SENSOR
1. Duplex unit ( Section: Duplex Unit)
2. Duplex inner cover [A] ( x 2)
3. Duplex entrance guide unit [A] (hook x 3)
 Lift up the duplex guide plate [A] first when reinstalling the duplex entrance
