Ricoh Aficio MP C2030 Service Manual

Paper Exit
D037/D038/D040/D041 4-110 SM
6. Front harness cover [A] ( x 1)

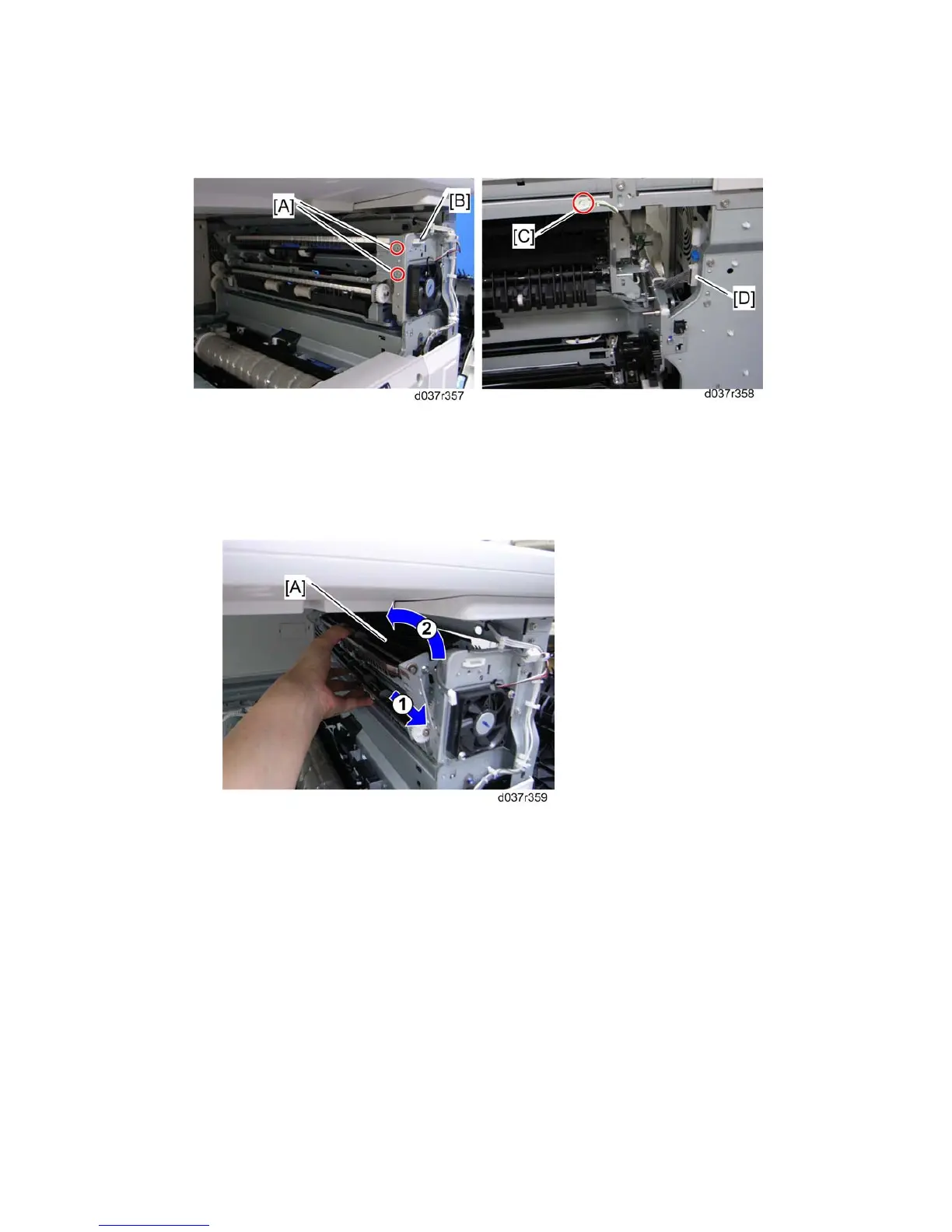

7. Remove or disconnect the following:
 Two screws [A] at the front side
 Front harness [B]
 Ground cable [C] ( x 1)
 Rear harness [D]
8. Paper exit unit [A]
4.13.3 FUSING EXIT
1. Paper exit unit ( Section: Paper Exit Unit)
