Ricoh Aficio MP C2030 Service Manual

Exterior Covers
D037/D038/D040/D041 4-24 SM

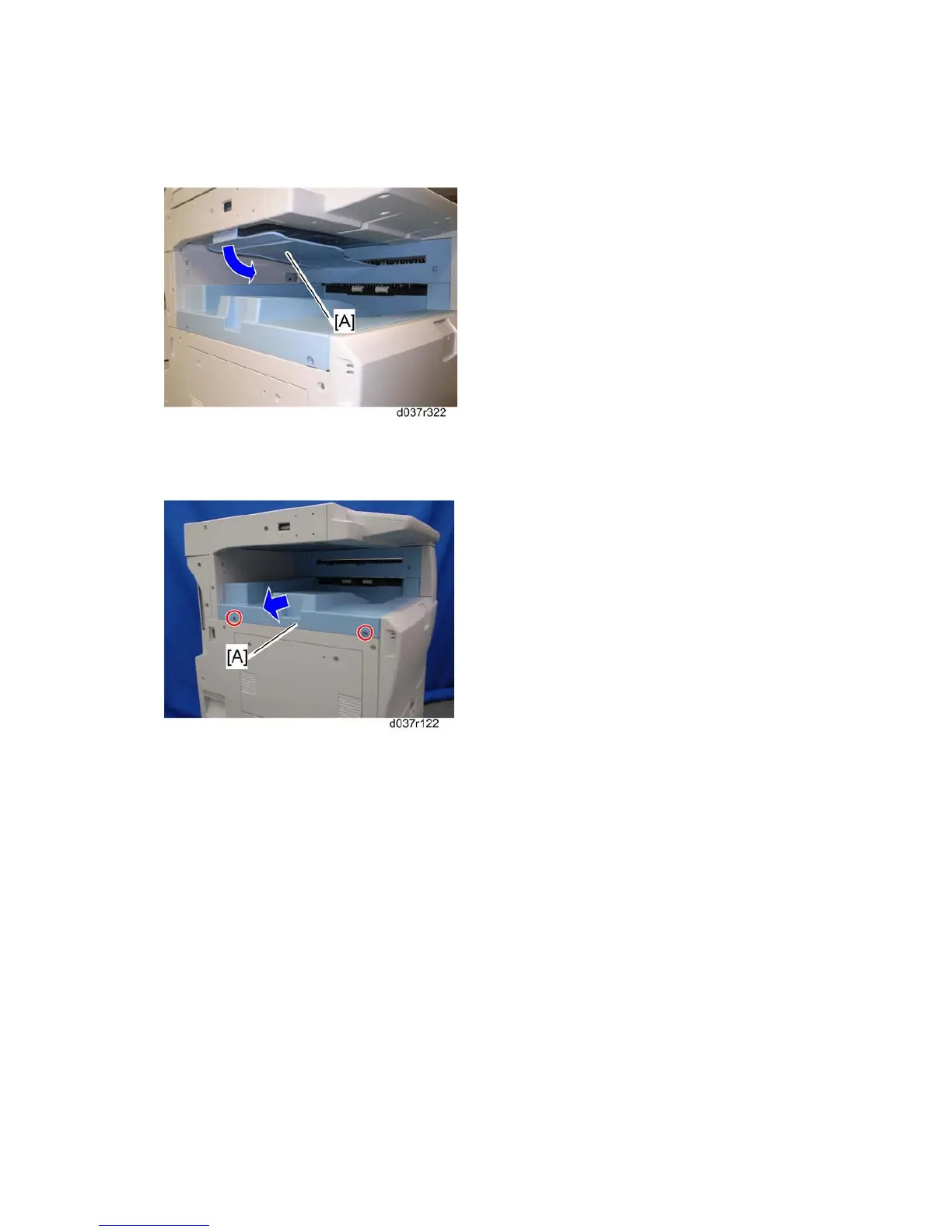

4.4.17 INVERTER TRAY
1. Inverter tray [A] (hooks)
4.4.18 INNER TRAY
1. Inner tray [A] ( x 2)
4.4.19 INNER REAR COVER
1. Left frame cover ( Section: Left Frame and Left Frame Rear Cover)
2. Paper exit cover ( Section: Paper Exit Cover)
3. Inner tray ( Section: Inner Tray)
