Ricoh Aficio MP C2030 Service Manual

Paper Feed and Separation Mechanism
D331 14 SM

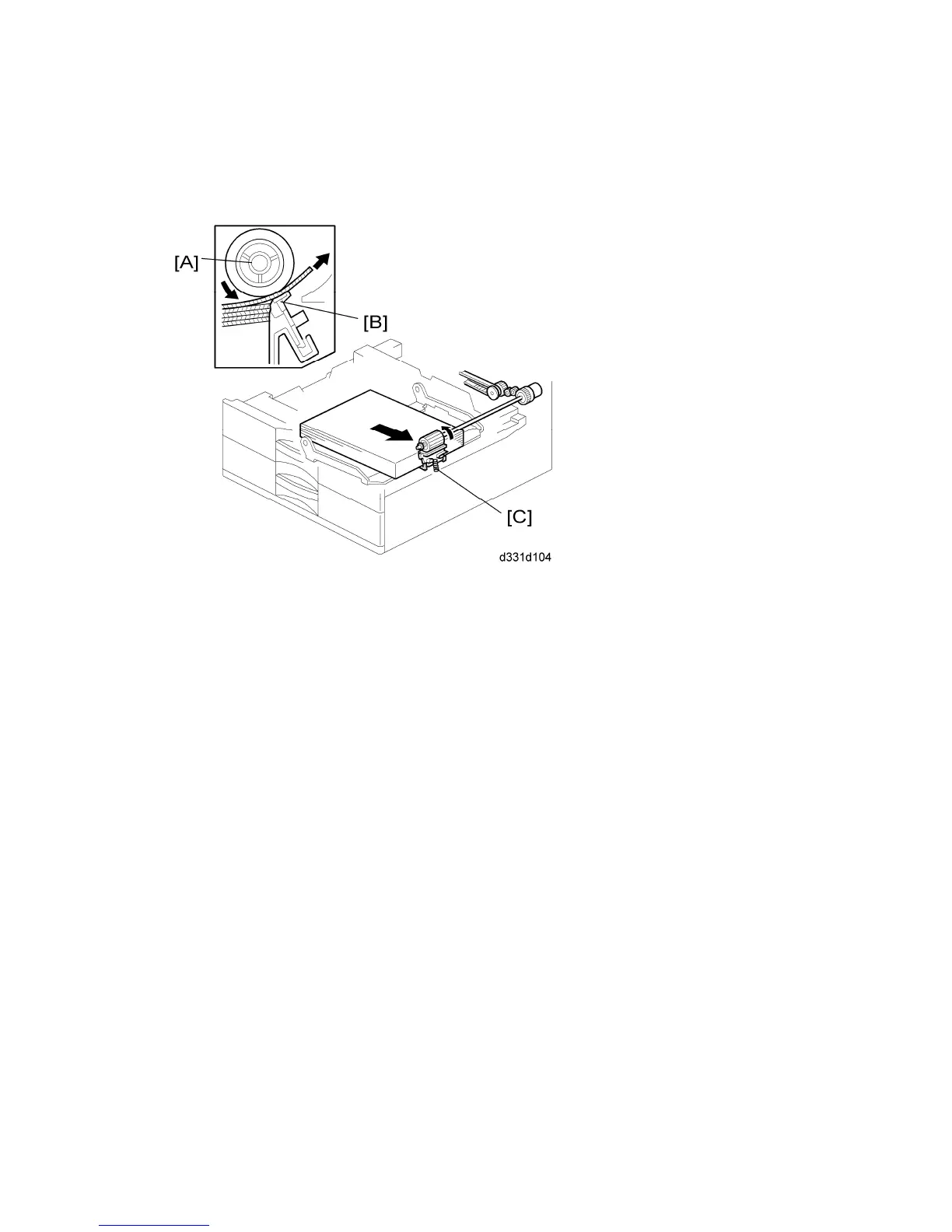

2.2 PAPER FEED AND SEPARATION MECHANISM
The paper tray holds 500 sheets. The paper feed roller [A] drives the top sheet of paper
from the paper tray to the copier/printer. The friction pad [B] allows only one sheet to feed
at a time. The friction pad applies pressure to the feed roller with a spring [C].
