Ricoh Aficio MP C2030 Service Manual

Duplex Unit
D037/D038/D040/D041 4-118 SM

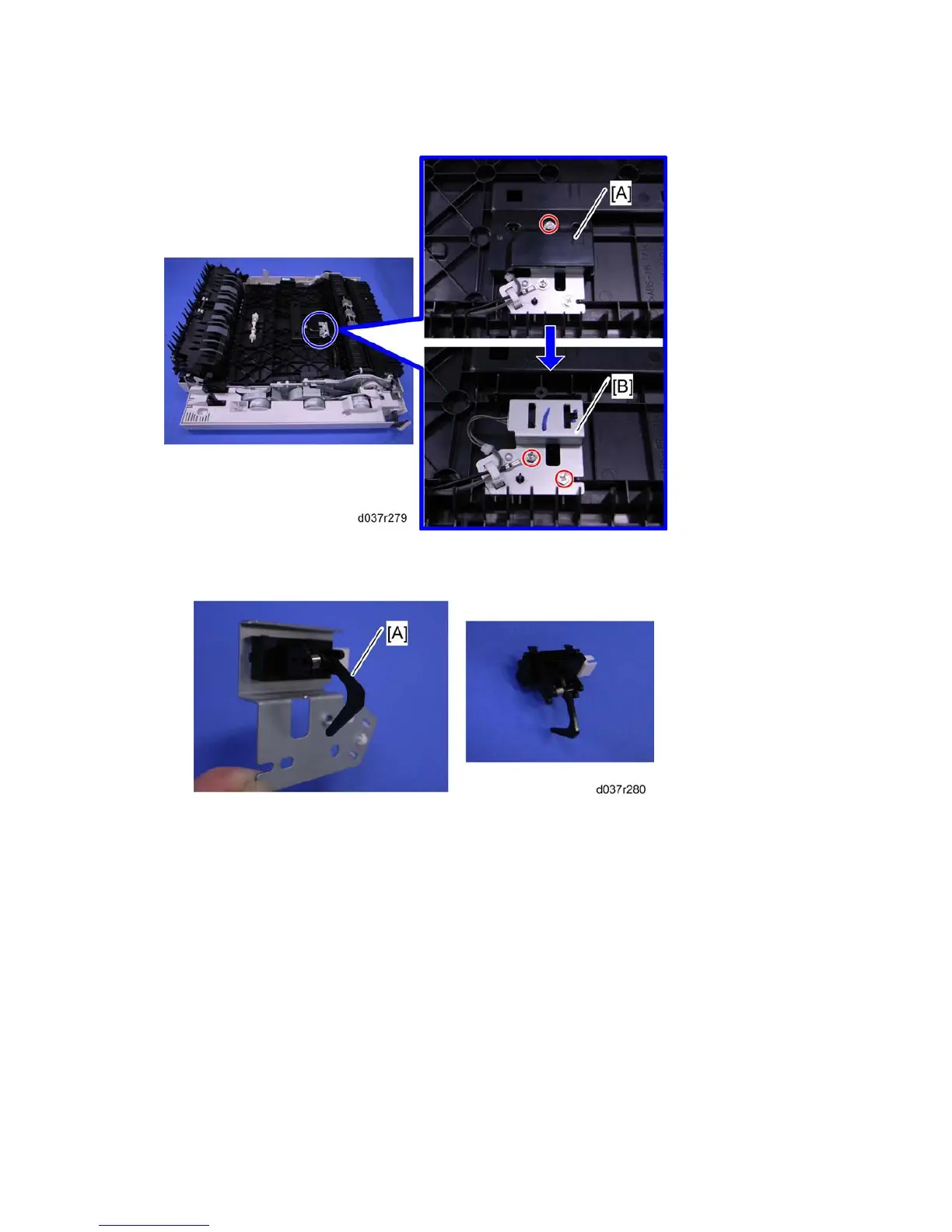

1. Duplex exit sensor assembly cover [A] ( x 1)
2. Duplex exit sensor assembly [B] ( x 1, ground screw x 1, = x 1, x 1)
3. Duplex exit sensor [A] (hook)
4.14.4 DUPLEX ENTRANCE MOTOR
1. Duplex unit ( Section: Duplex Unit)
2. Duplex inner cover ( Section: Duplex Entrance Sensor)

Ricoh Aficio MP C2030 Specifications

General

Brand	Ricoh
Model	Aficio MP C2030
Category	All in One Printer
Language	English
