Ricoh Aficio MP C2030 Service Manual

USB2.0/SD Slot Type A
D037/D038/D040/D041 2-62 SM

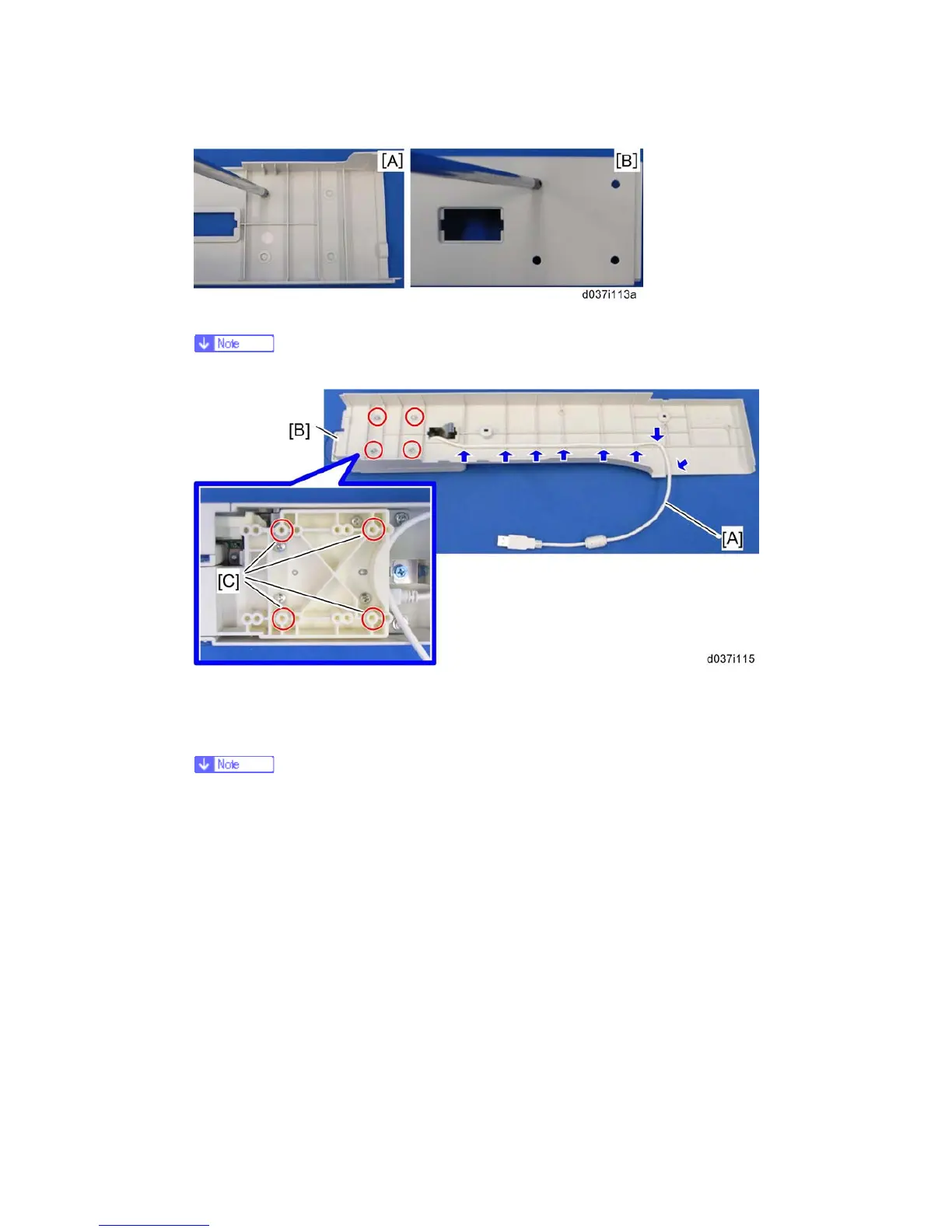

7. Make four holes in the scanner left cover with a screwdriver as shown [A].
 Smooth the four holes in the scanner left cover as shown [B].
8. Route the USB cable [A] through the gaps in the left scanner cover.
9. Secure the USB2.0/SD Slot [B] with the left scanner cover as shown above ( x 4:
M3x8).
 Use the screw holes [C] as shown above.
