Scanner Unit
D037/D038/D040/D041 4-38 SM

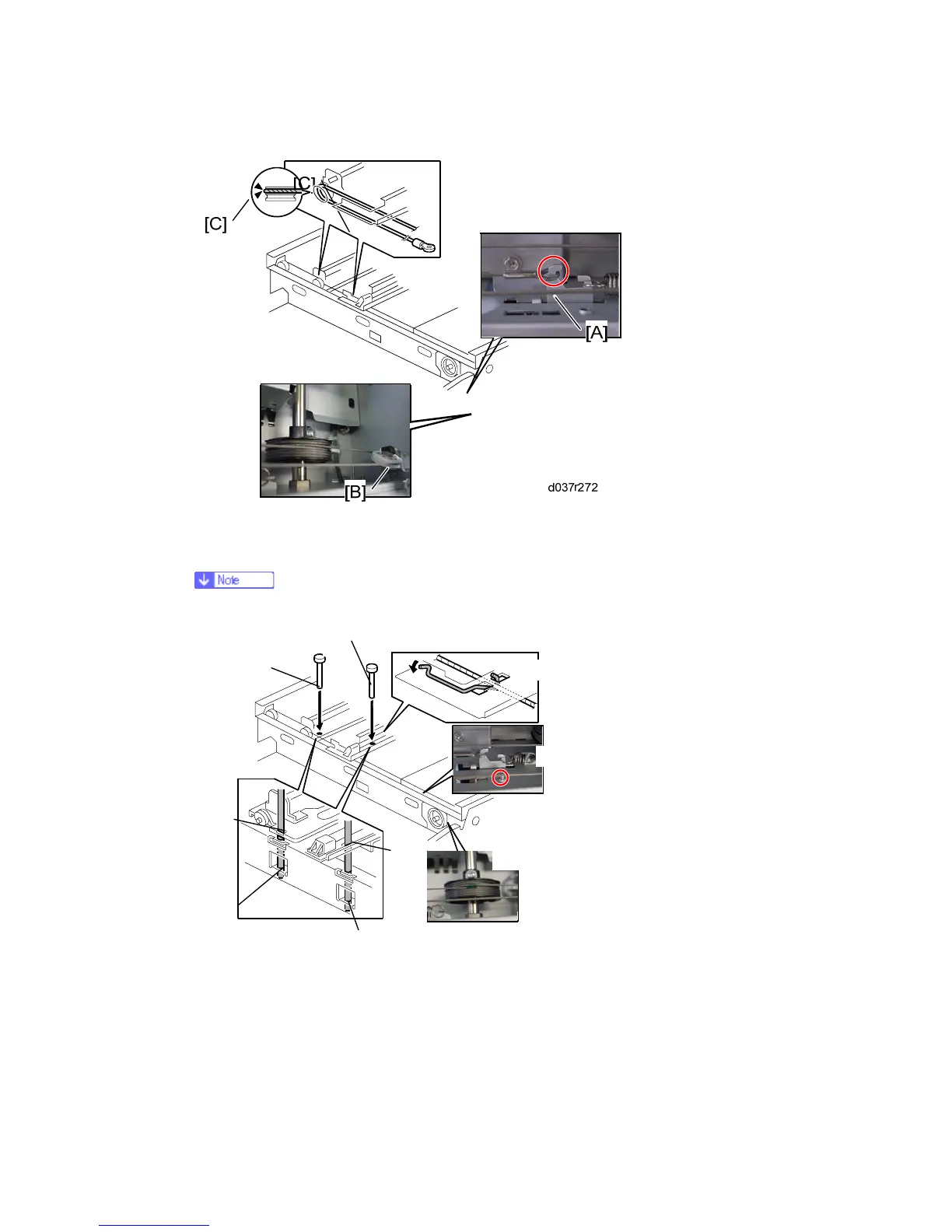

6. Hook the right end onto the front scanner wire bracket [A]. The end should go via the
rear track of the right pulley [B] and the front track of the movable pulley [C].
 Do not attach the scanner wire bracket with the screw at this time.
[F]
[C]
[D]
[A]
[E]
[B]
[I]
d037r273
[H]
[G]
7. Remove the tape from the drive pulley.
8. Insert a scanner positioning pin [A] through the 2nd carriage hole [B] and the left holes
[C] in the front rail. Insert another scanner positioning pin [D] through the 1st carriage
hole [E] and the right holes in the front rail [F].
9. Insert two more scanner positioning pins through the holes in the rear rail.
