Image Creation
D037/D038/D040/D041 4-50 SM

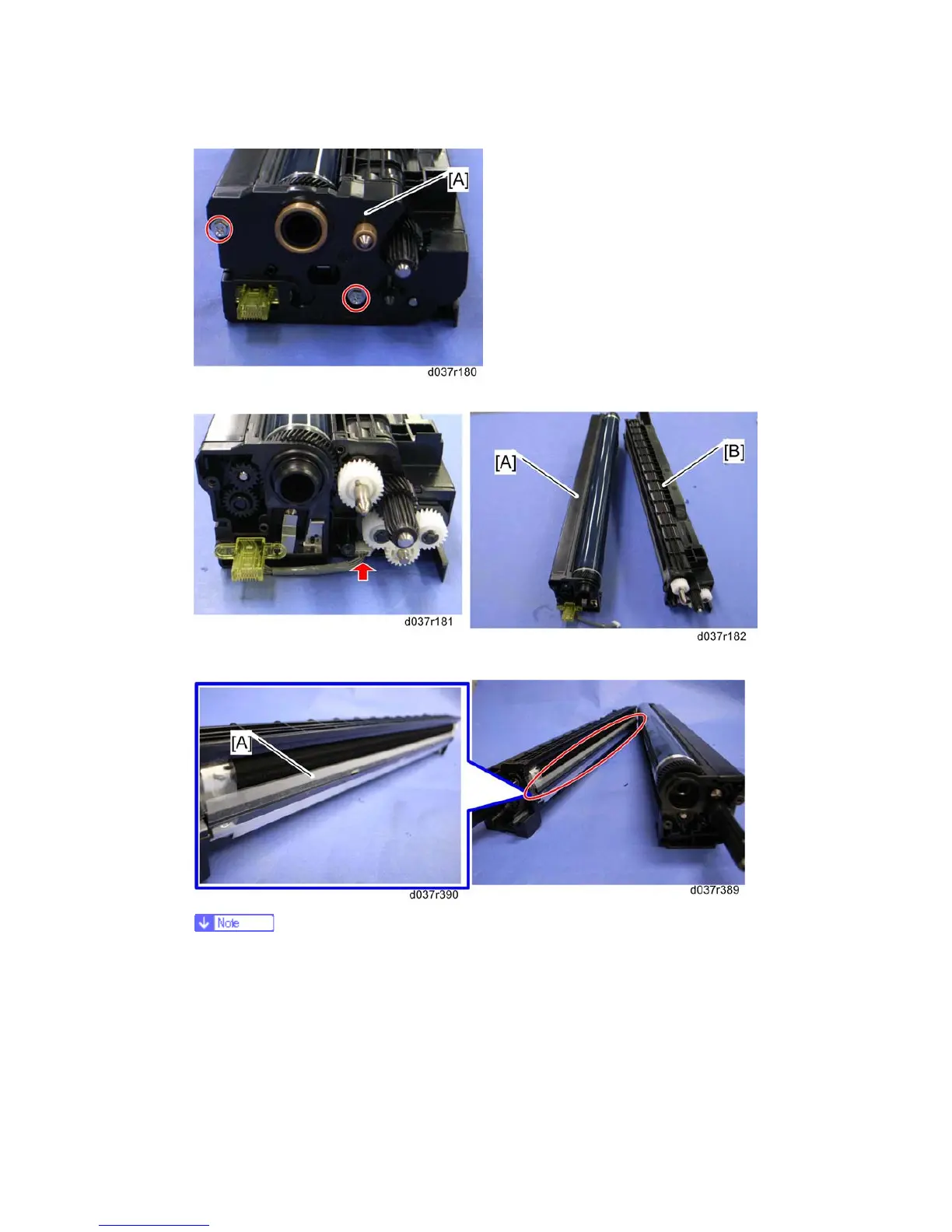

6. Rear cover [A] ( x 2)
7. Drum unit [A] and development unit [B] ( x 1)
When the development unit is removed from the drum unit, clean the entrance
mylar [A] with a vacuum cleaner.
