Ricoh Aficio MP C2030 Service Manual

Image Transfer
D037/D038/D040/D041 4-64 SM

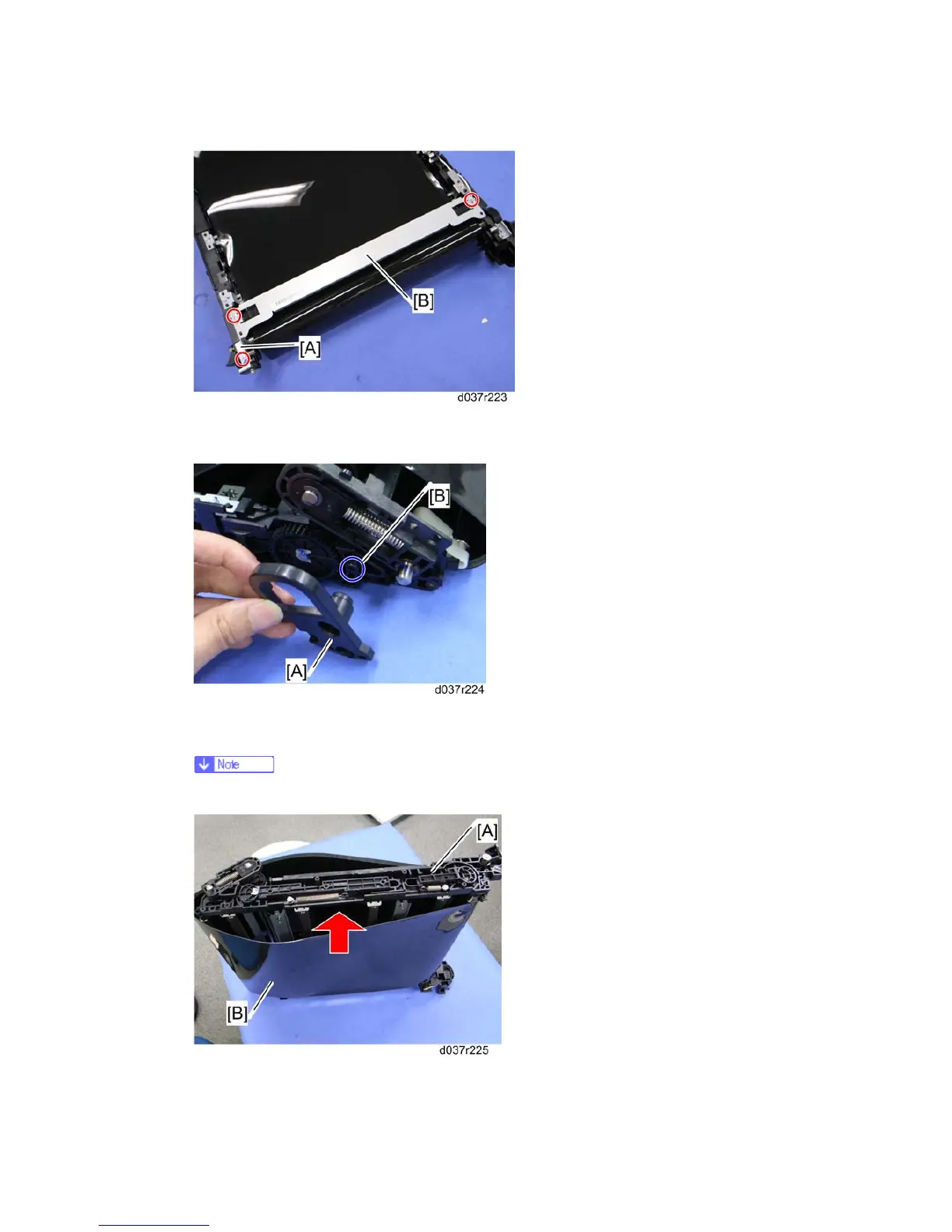

10. Front guide pin bracket [A] ( x 1)
11. Press roller bracket [B] ( x 2)
12. Attach the handle, which was removed in step 6, to the projection [B] on the rear left
side ( x 1).
 This handle will be used as a stand in later steps.
13. Stand the ITB unit [A] as shown above.
