Ricoh Aficio MP C2030 Service Manual

Drive Unit
SM 4-79 D037/D038/D040/D041
Replacement
& Adjustment

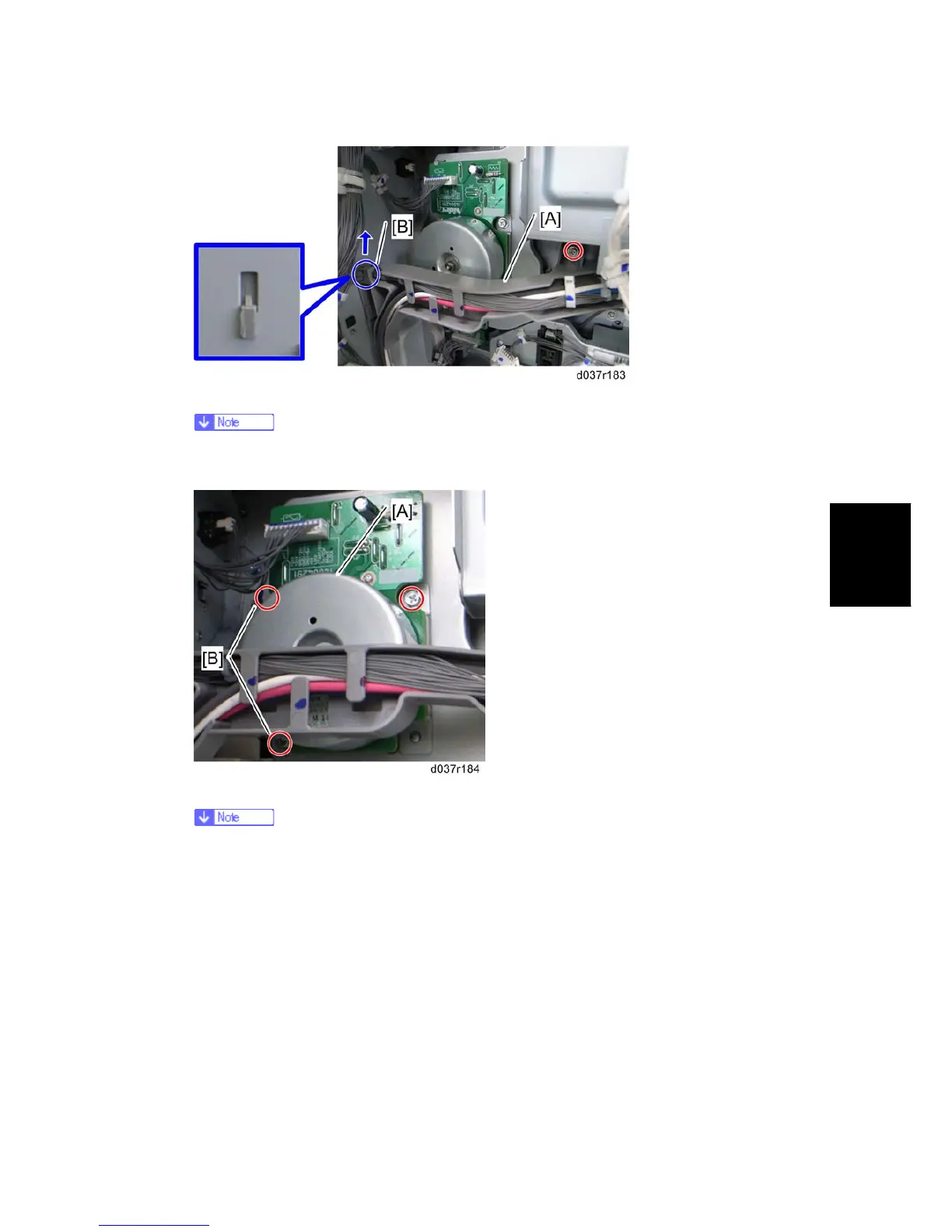

4. Loosen the stay [A] ( x 1, hook [B] x 1)
 The hook [B] is installed as shown above. Do not pull the stay by force, or the
hook might be broken.
5. Fusing/paper exit motor [A] ( x 3,  x 1)
 The picture below shows how to remove the screw [B] of the fusing/paper exit
motor.
