Fusing
D037/D038/D040/D041 4-86 SM

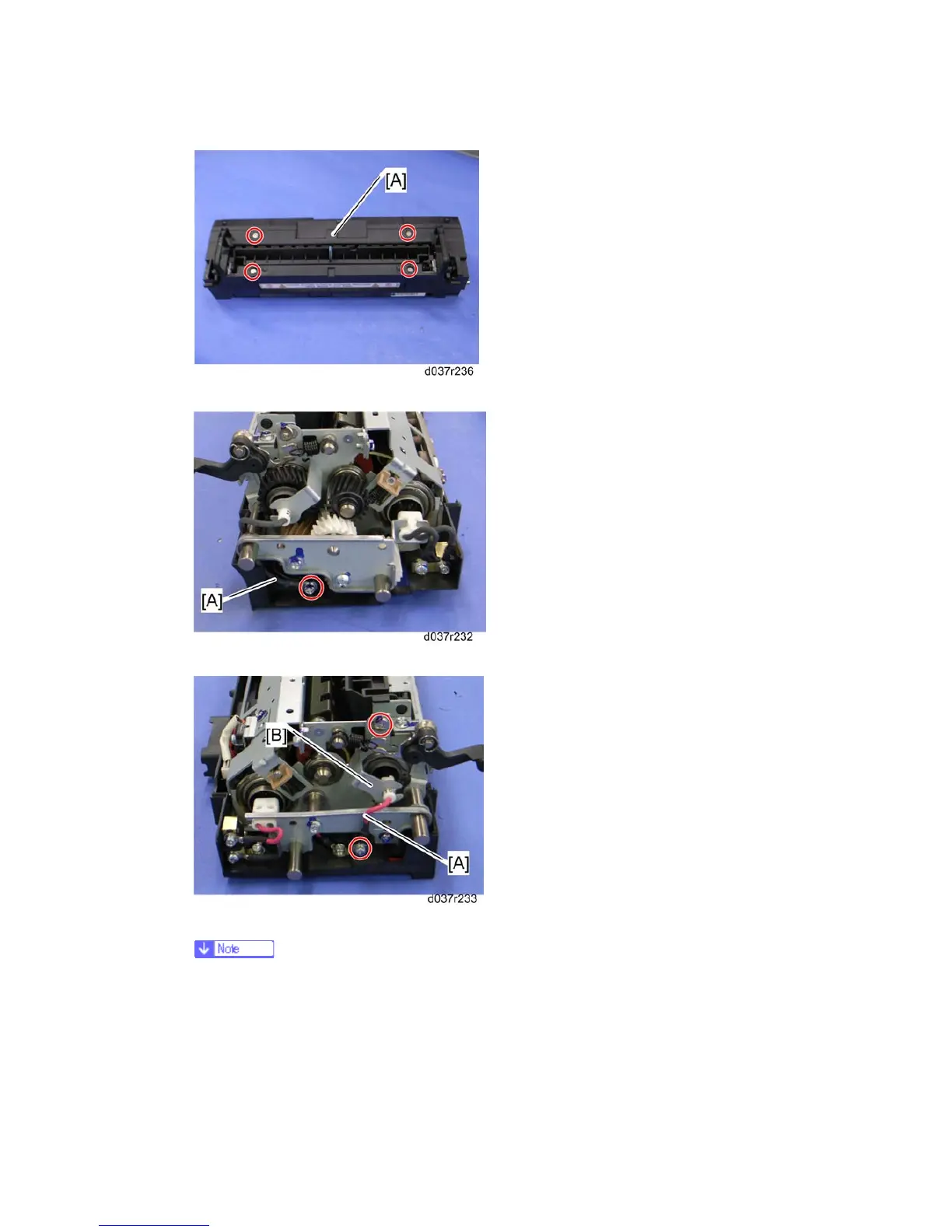

2. Fusing upper cover [A] ( x 4)
3. Remove the cable [A] from the rear stay ( x 1).
4. Remove the cable [A] from the front stay ( x 1).
 The color of the pressure roller fusing lamp cord differs depending on the
destination.
 Red: 220 - 240 V, Blue: 120 V
5. Front pressure roller lamp stay [B] ( x 1)
