Ricoh Aficio MP C2030 Service Manual

Fusing
D037/D038/D040/D041 4-90 SM

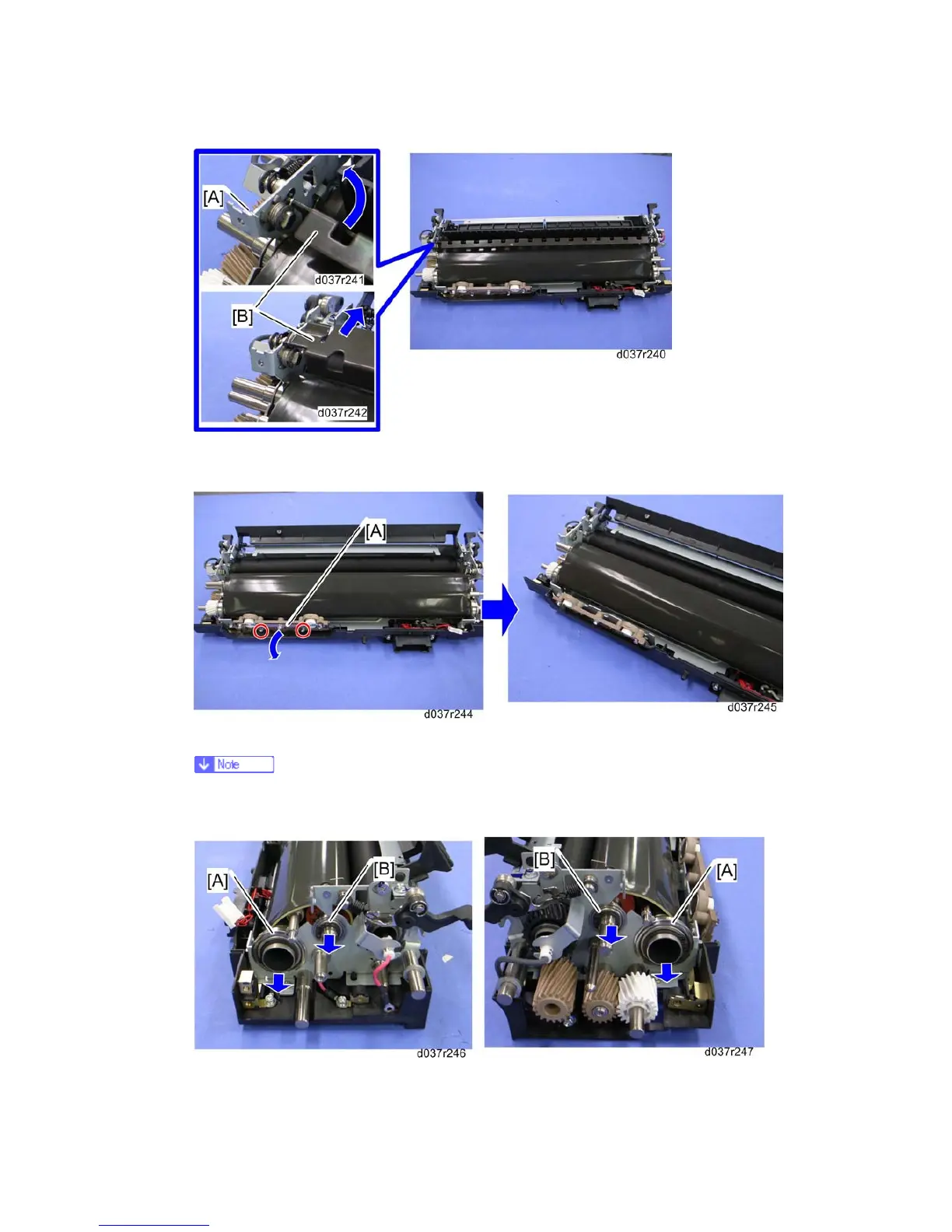

9. Release the springs [A] at the front and rear side.
10. Stripper plate [B]
11. Take the thermostat base [A] aside ( x 2).
 This prevents the fusing belt from being torn or scratched when the fusing belt
is removed from the fusing unit.
12. Bearings [A] of the heating roller (C-ring x 1 each)

Ricoh Aficio MP C2030 Specifications

General

Brand	Ricoh
Model	Aficio MP C2030
Category	All in One Printer
Language	English
