Duplex Unit
SM 4-125 D037/D038/D040/D041
Replacement
& Adjustment

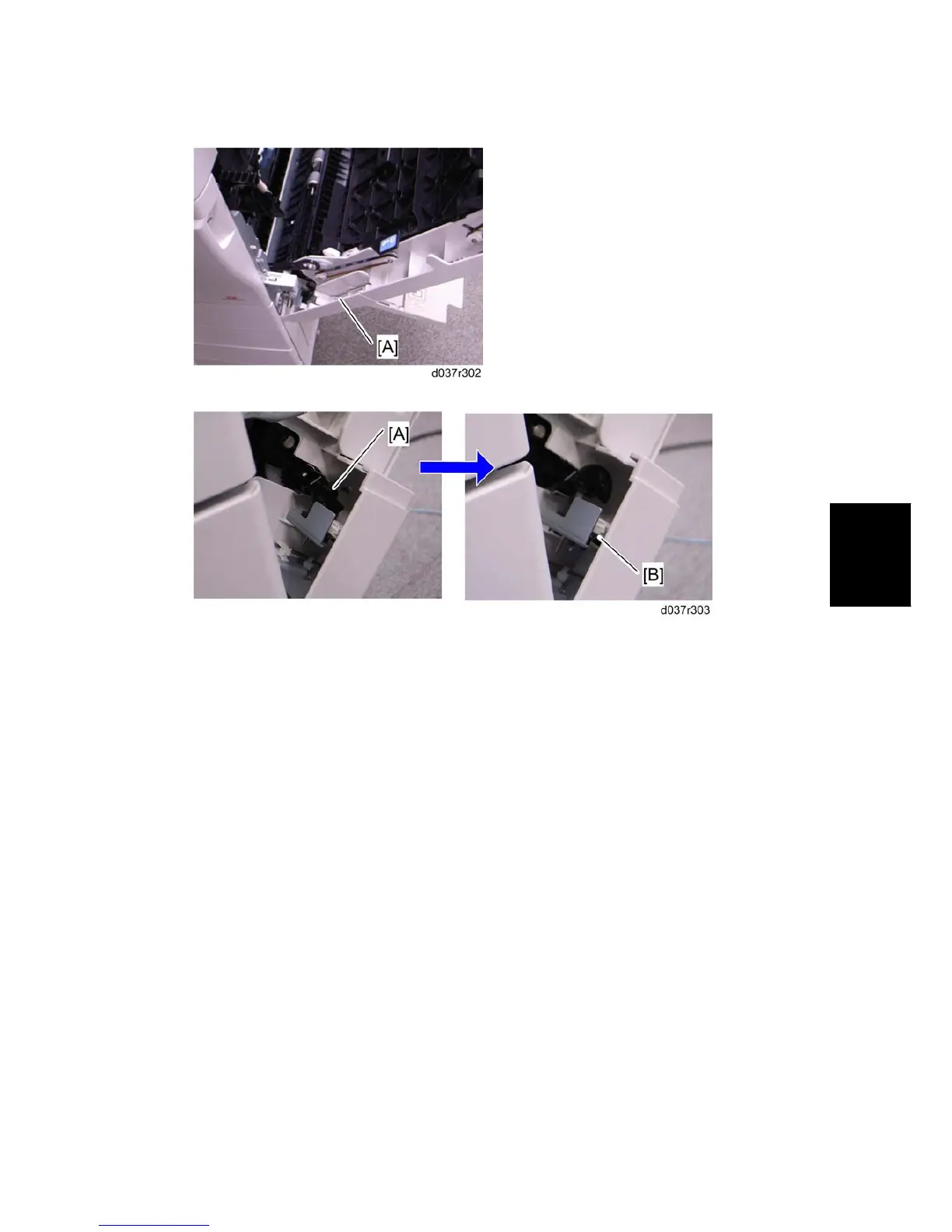

3. Remove the hand holder [A].
4. Rotate the actuator [A] counter clockwise as shown above.
5. By-pass tray HP sensor [B] (hook).
