Ricoh Aficio MP C2030 Service Manual

Troubleshooting Guide
D037/D038/D040/D041 6-8 SM

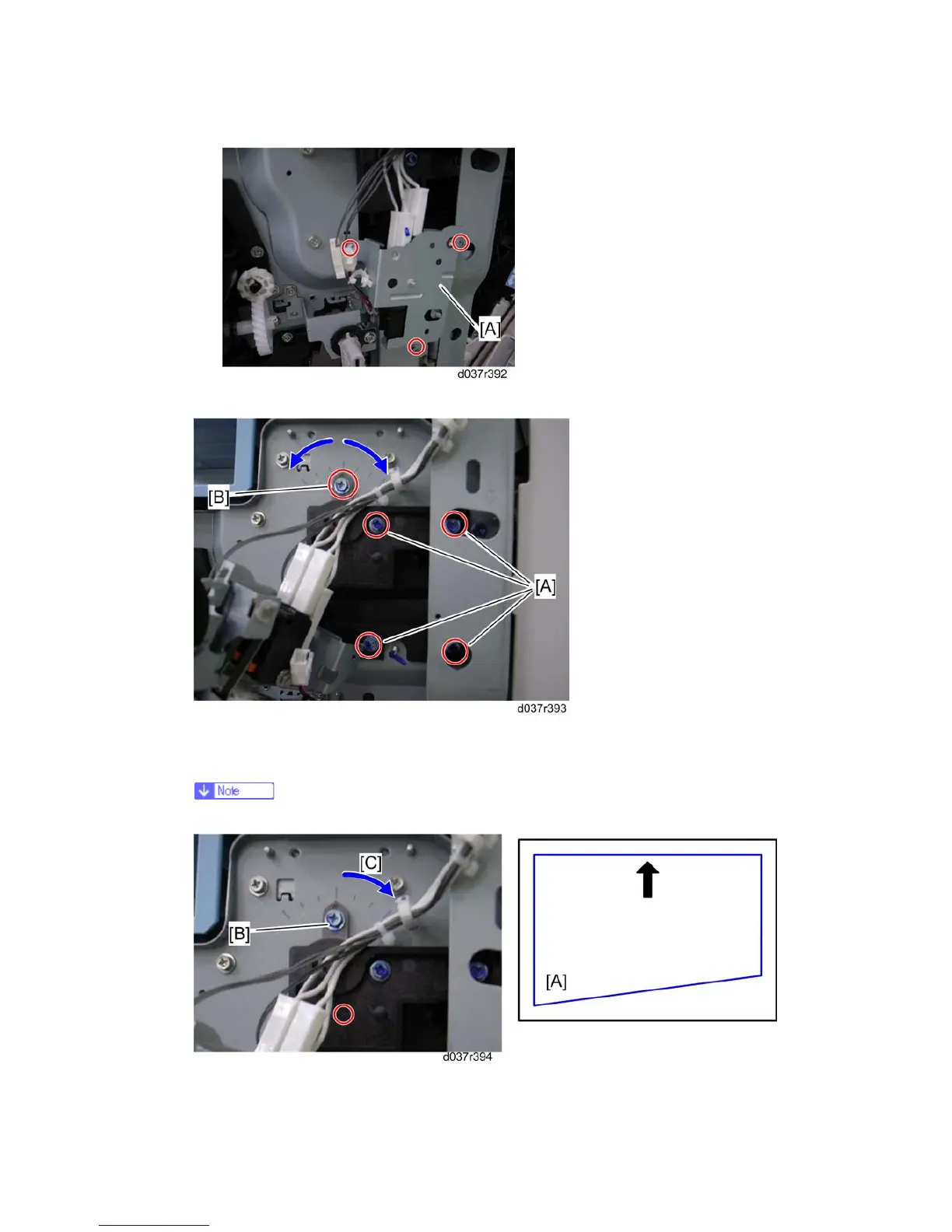

2. Remove the interlock switch bracket [A] ( x 3, = x 1,  x 2).
3. Loosen the four screws [A] on the front fusing guide.
4. Remove the screw [B] on the adjustor lever.
 This screw is not necessary after tightening the front fusing guide.
5. If the horizontal lines slope down to the left [A], move the front fusing guide upward. To

Ricoh Aficio MP C2030 Specifications

General

Brand	Ricoh
Model	Aficio MP C2030
Category	All in One Printer
Language	English
