Paper Feed Unit (D331)
D037/D038/D040/D041 2-22 SM
 This installation procedure uses the following symbol.
 : Screws
1. Remove the strips of tape.

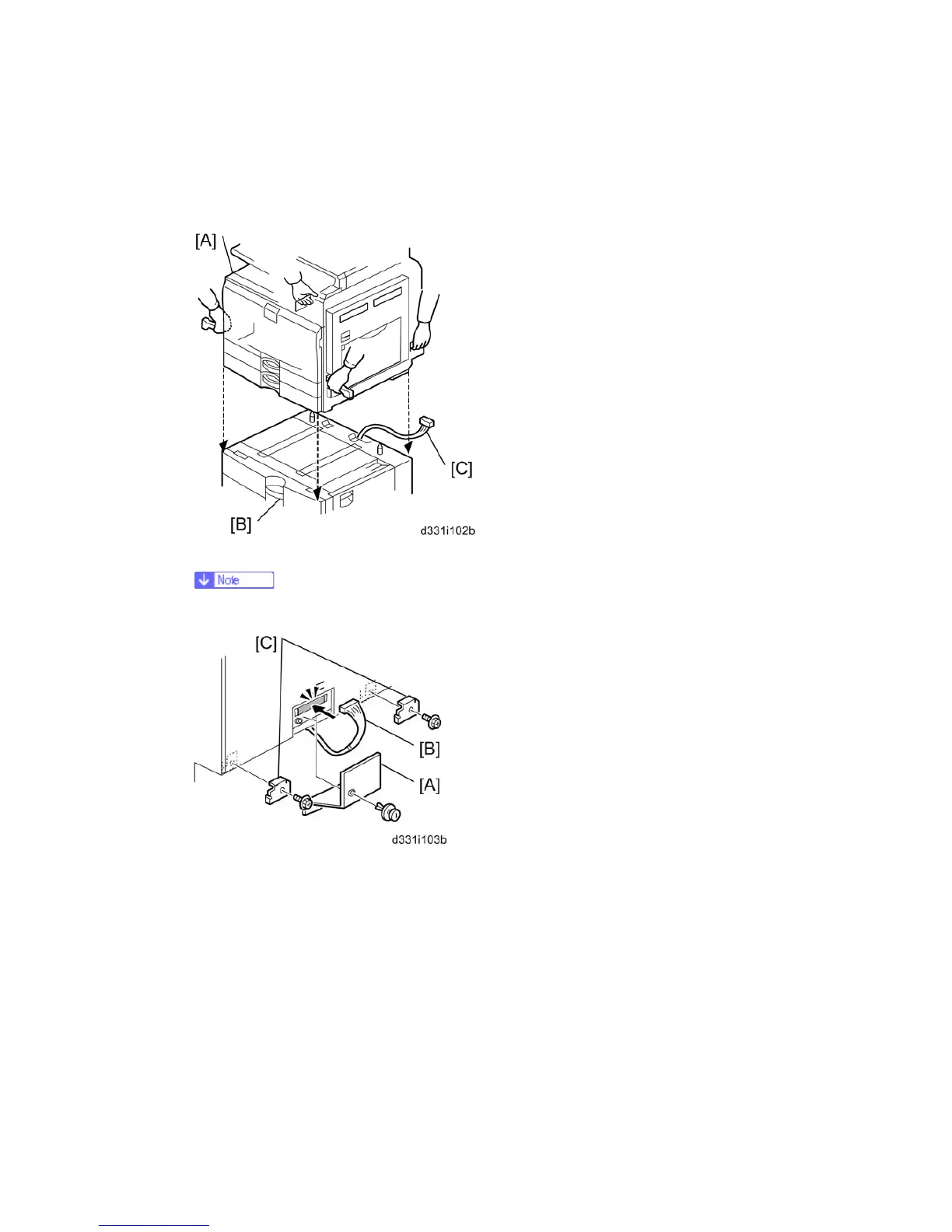

2. Set the copier [A] on the paper tray unit [B].
 When installing the copier, be careful not to pinch the cable [C].
3. Remove the connector cover [A] (rivet screw x 1).
4. Connect the cable [B] to the copier, as shown.
5. Attach a securing bracket [C] to each side of the paper tray unit, as shown ( x 1: M3 x
8 each).
6. Re-install the connector cover.
