Caster Table (D488)
D037/D038/D040/D041 2-28 SM
table.
 Use the screw holes [B] and [C] if the one-tray paper feed unit (D425) is installed
on the caster table.

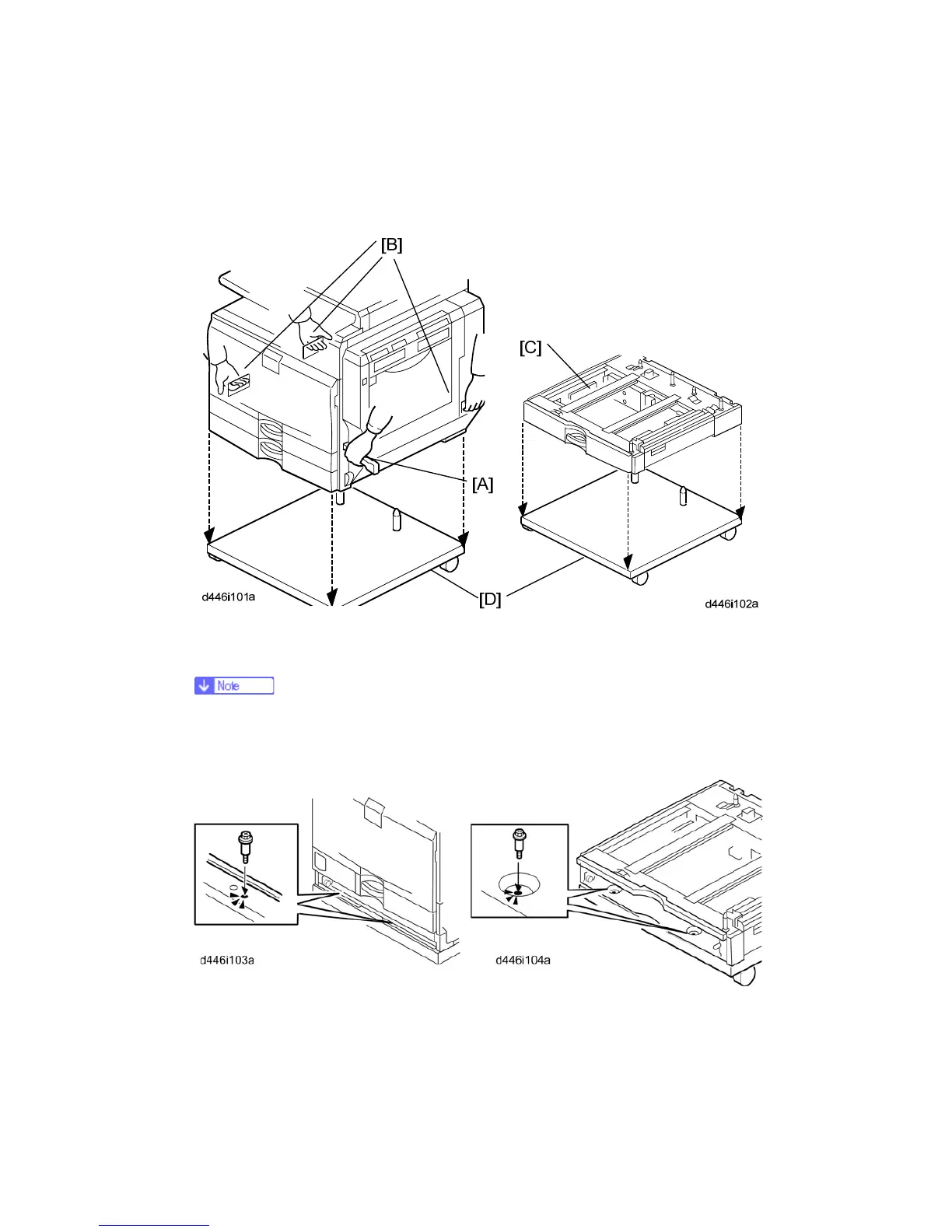

3. Grasp the handle [A] and grips [B] of the machine, if the copier is to be installed on the
caster table.
 Hold the handle and grips of the machine when you lift and move the machine.
4. Lift the copier or one-tray paper feed unit [C], and then install it on the caster table [D].
5. Pull out tray 2 of the mainframe or the tray of the one-tray paper feed unit.
6. Secure the machine or one-tray paper feed unit to the caster table (step screw x 2)
7. Reinstall the tray in the mainframe or one-tray paper feed unit.
8. Adjust the five leveling adjustors of the caster table.
