ARDF (D366)
D037/D038/D040/D041 2-30 SM

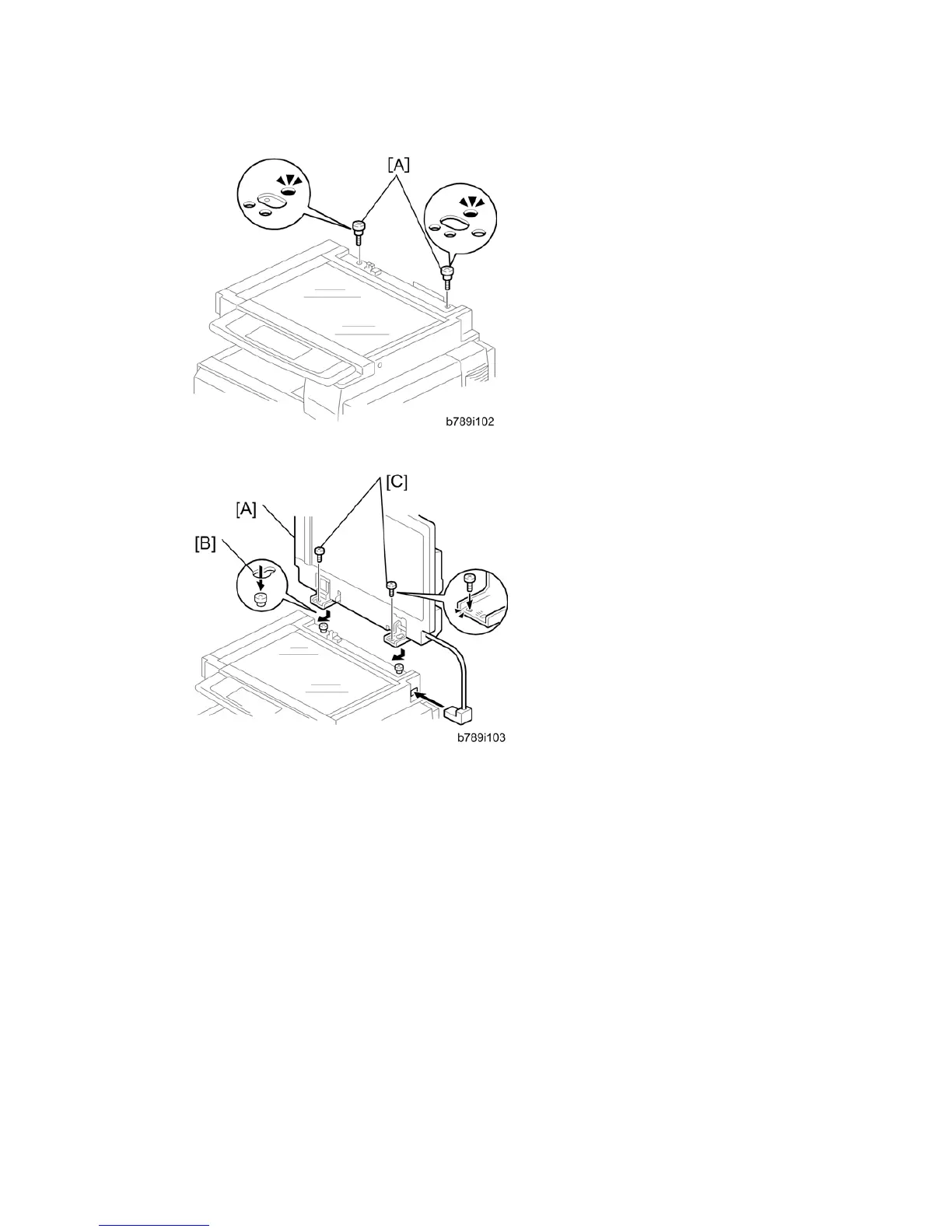

2. Insert the two stud screws [A] on the top of the machine.
3. Mount the ARDF [A] by aligning the screw keyholes [B] of the ARDF support plate over
the stud screws.
4. Slide the ARDF toward the front of the machine.
5. Secure the ARDF with the two knob screws [C].
