1-Bin Tray Unit (D426)
D037/D038/D040/D041 2-38 SM
 If both the shift tray unit and the 1-bin tray unit are installed in the mainframe at the
same time, install the shift tray unit first. Installing the shift tray unit after the 1-bin
tray unit may be difficult.

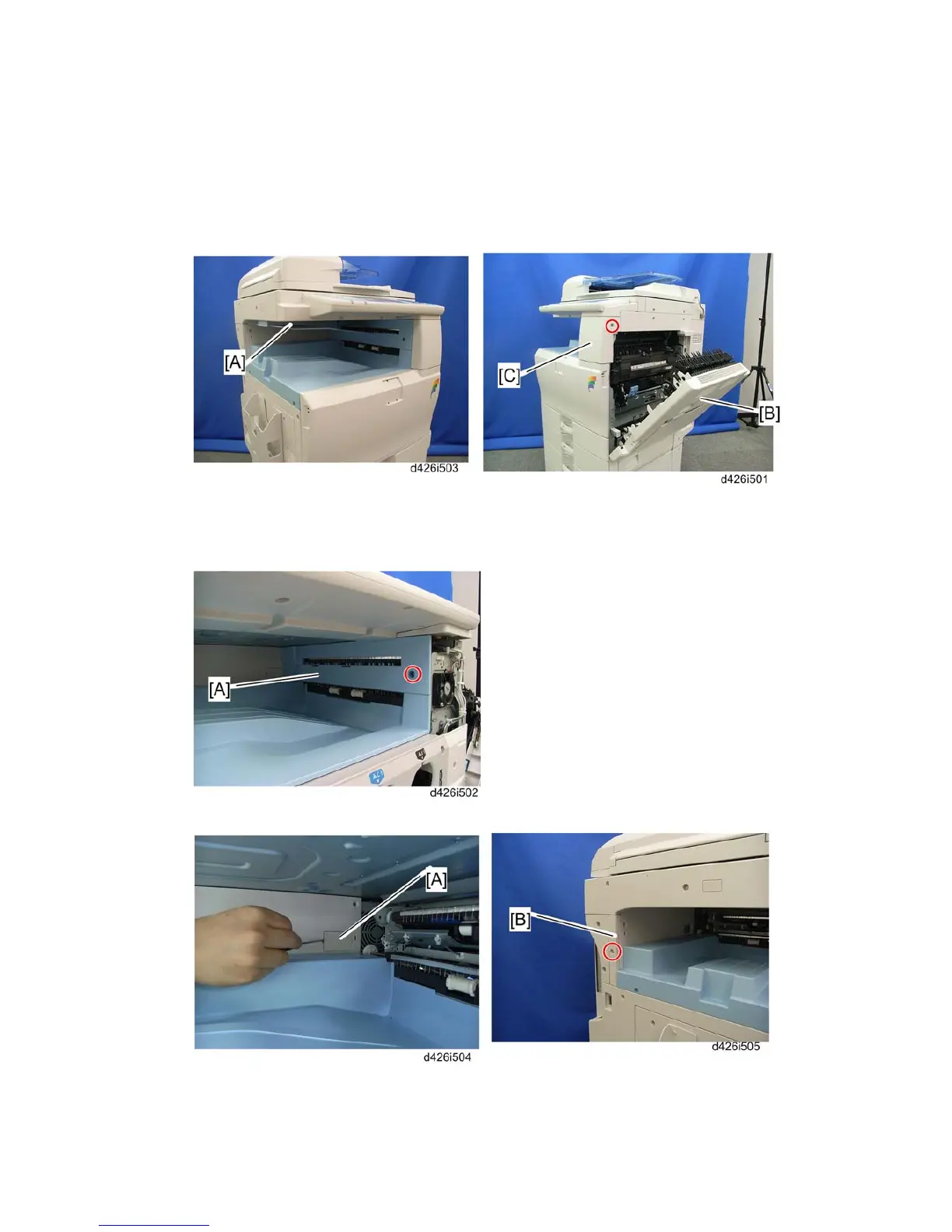

1. Remove all tapes.
2. Remove the inverter tray [A] (hook).
3. Open the right door [B] of the machine.
4. Remove the front right cover [C] ( x 1).
5. Remove the paper exit cover [A].
6. Remove the connector cover [A] with a small flat screwdriver.
To Next Page
