Ricoh Aficio MP C2030 Service Manual

Internal Finisher (D429)
D037/D038/D040/D041 2-44 SM

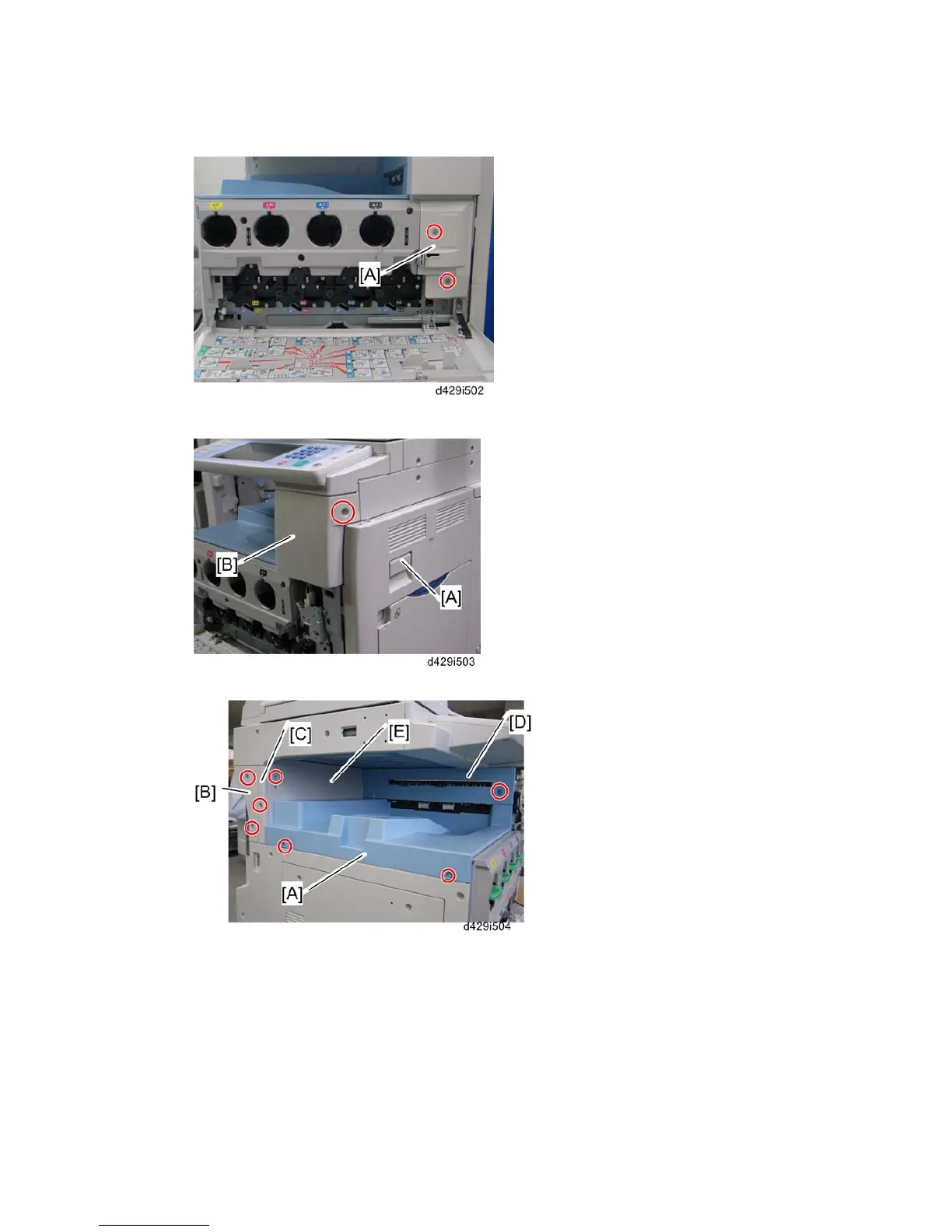

6. Remove the inner right cover [C] ( x 2).
7. Open the duplex unit [A], and then remove the front right cover [B] ( x 1).
8. Remove the following:
 Inner tray [A] ( x 2)
 Left frame rear cover [B] ( x 2)
 Left frame cover [C] ( x 1)
 Paper exit cover [D] ( x 1)
 Inner rear cover [E] ( x 1)
