Internal Finisher (D429)
D037/D038/D040/D041 2-46 SM

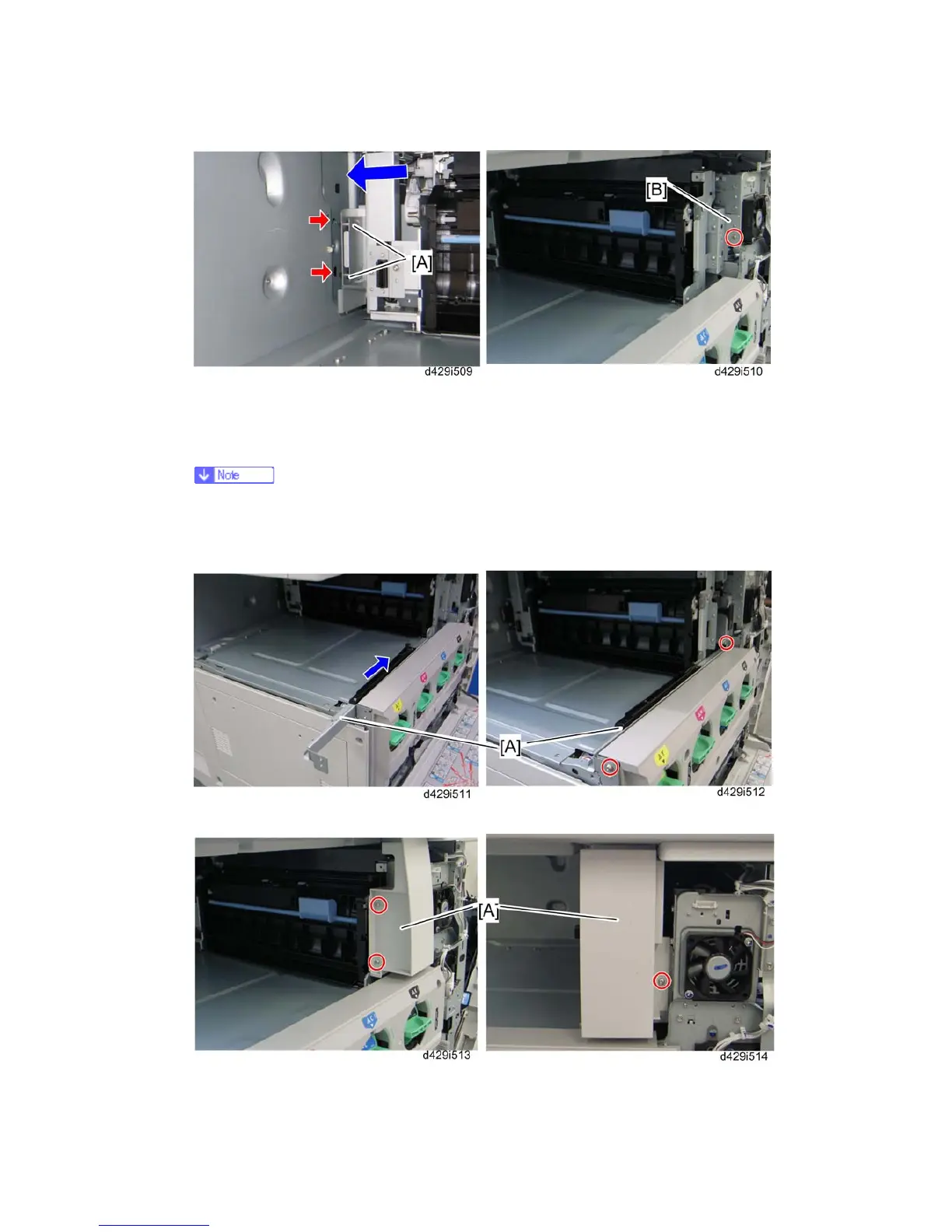

2. Insert two joint pins [A] into the two holes in the inner rear bracket.
3. Fully attach the front side [B] of the inverter unit to the paper exit unit of the mainframe
after inserting the two joint pins ( x 1: M3x6).
 Insert the two joint pins before attaching the front side of the inverter unit to
the paper exit unit of the mainframe. Otherwise, paper jams may occur
between the paper exit unit and inverter unit.
4. Install the guide rail [A] ( x 2: M3x6).
5. Attach the inverter cover [A] ( x 3: M3x10).
