Ricoh Aficio MP C2030 Service Manual

Motors and Clutch
SM 3 D425
D425
Paper Feed
Unit PB3070

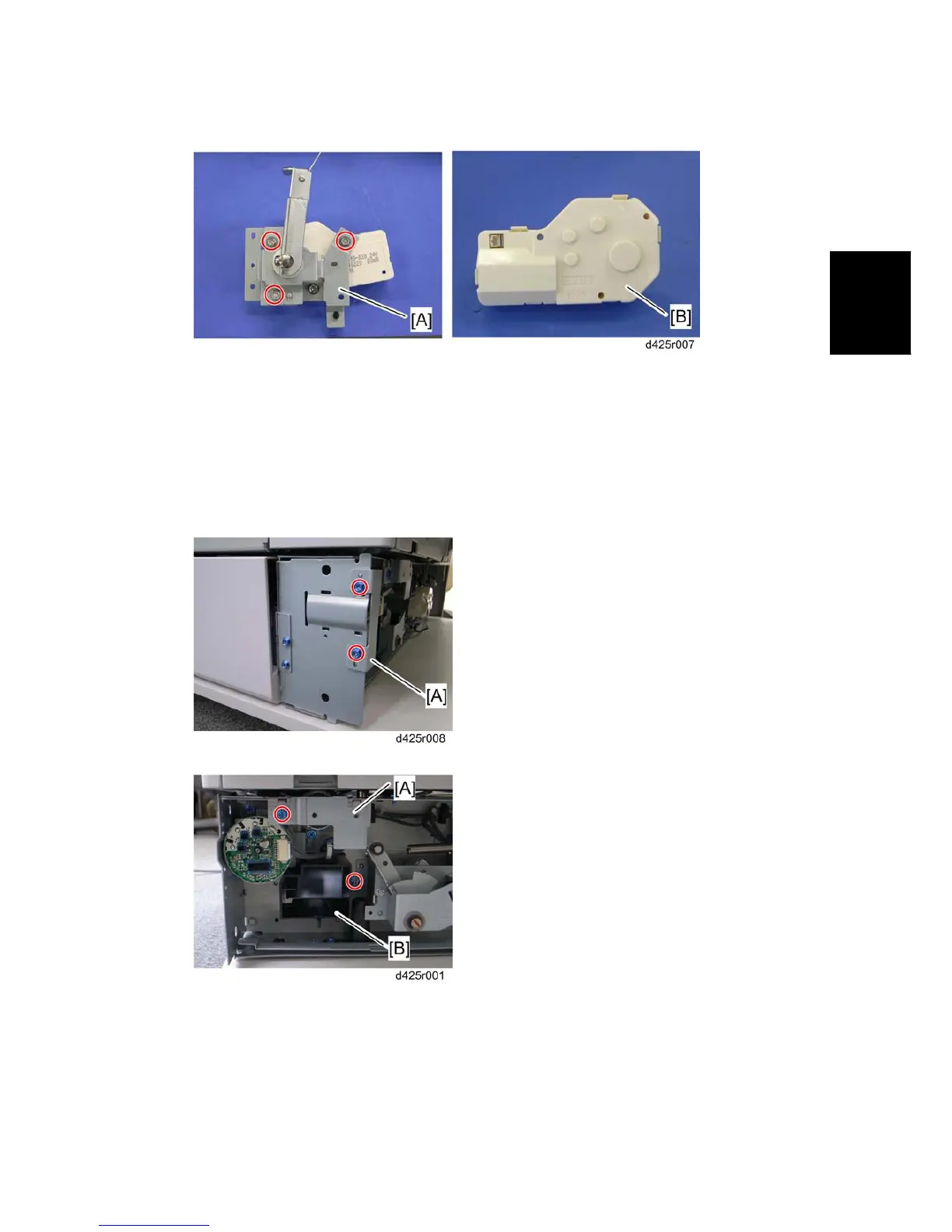

4. Paper feed motor bracket [A] ( x 3)
5. Paper feed motor [B]
1.2.2 TRANSPORT MOTOR
1. Pull out the Tray.
2. Rear cover ( Rear Cover)
3. Rear right cover ( Rear Right Cover)
4. Stay [A] ( x 2)
5. Rear right bracket [A] ( x 1)
6. Tray end cover [B] ( x 1, = x 1)
