Tray Motor and Half Turn Sensor Board
D428 2 SM

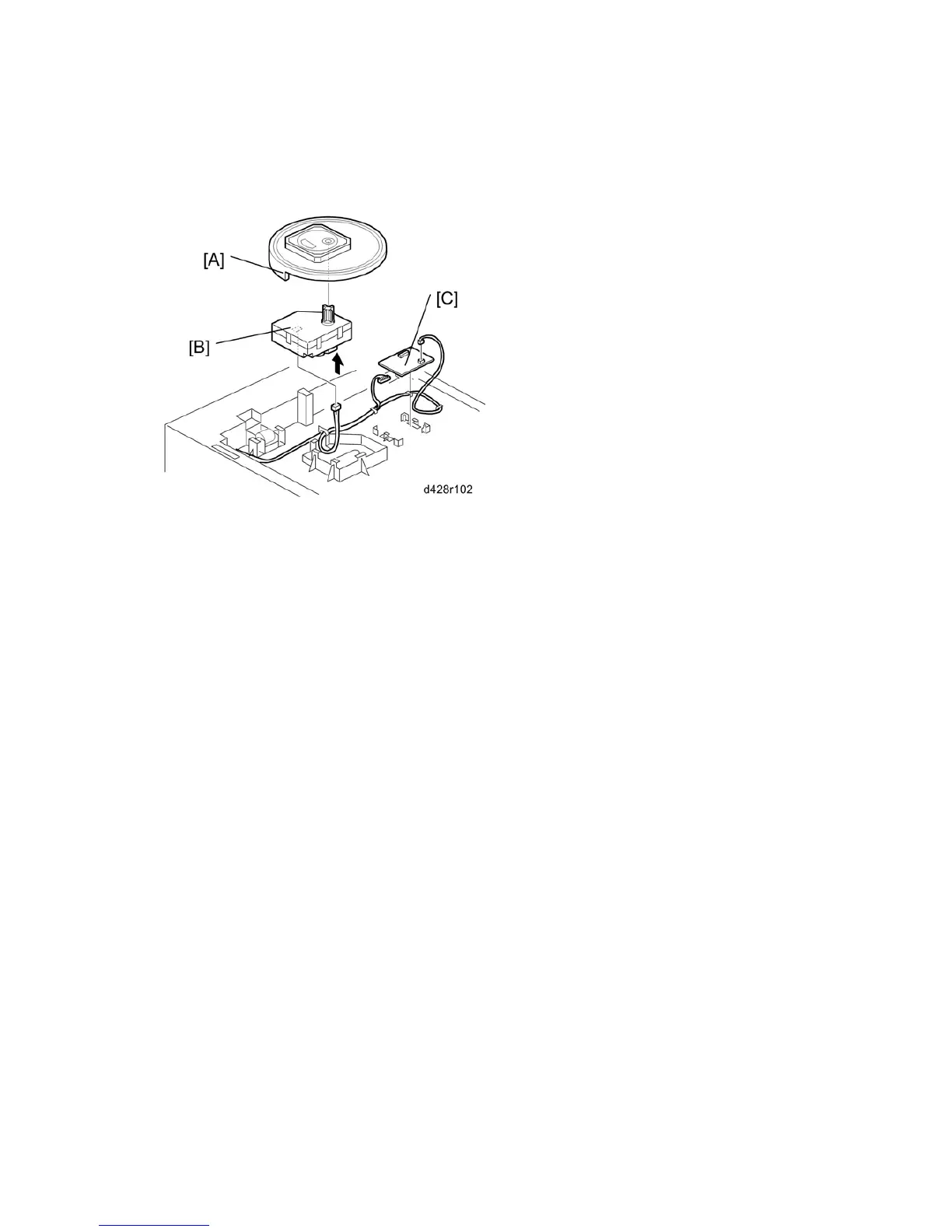

1.2 TRAY MOTOR AND HALF TURN SENSOR BOARD
1. Top cover ( Tray Cover)
2. Slip disc [A]
3. Tray motor [B] ( x 1)
4. Half turn sensor board [C] ( x 1).
