6.5 CABLING BETWEEN PCRIP-10 AND COMPUTER
The cable to be installed now is one that the customer has purchased to
match his specific computer and communication port choice. The correct
cable for each computer and communication port is described generally
below. (For more detailed technical information on cables, see page 6-12).
A. IBM and compatibles - Parallel
1. Make sure that the customer’s computer is turned off.
2. Attach the DB-25 Male end of a standard PC parallel printer cable to the
customer designated parallel output port on the rear of the computer.
Record the choice of LPT1 or LPT2 because this port name will be
required during the configuration process.
3. Attach the other end (36-pin Centronics Male) of a standard PC parallel
printer cable to the input port on the rear of the PCRIP-10 labeled
"Parallel In".

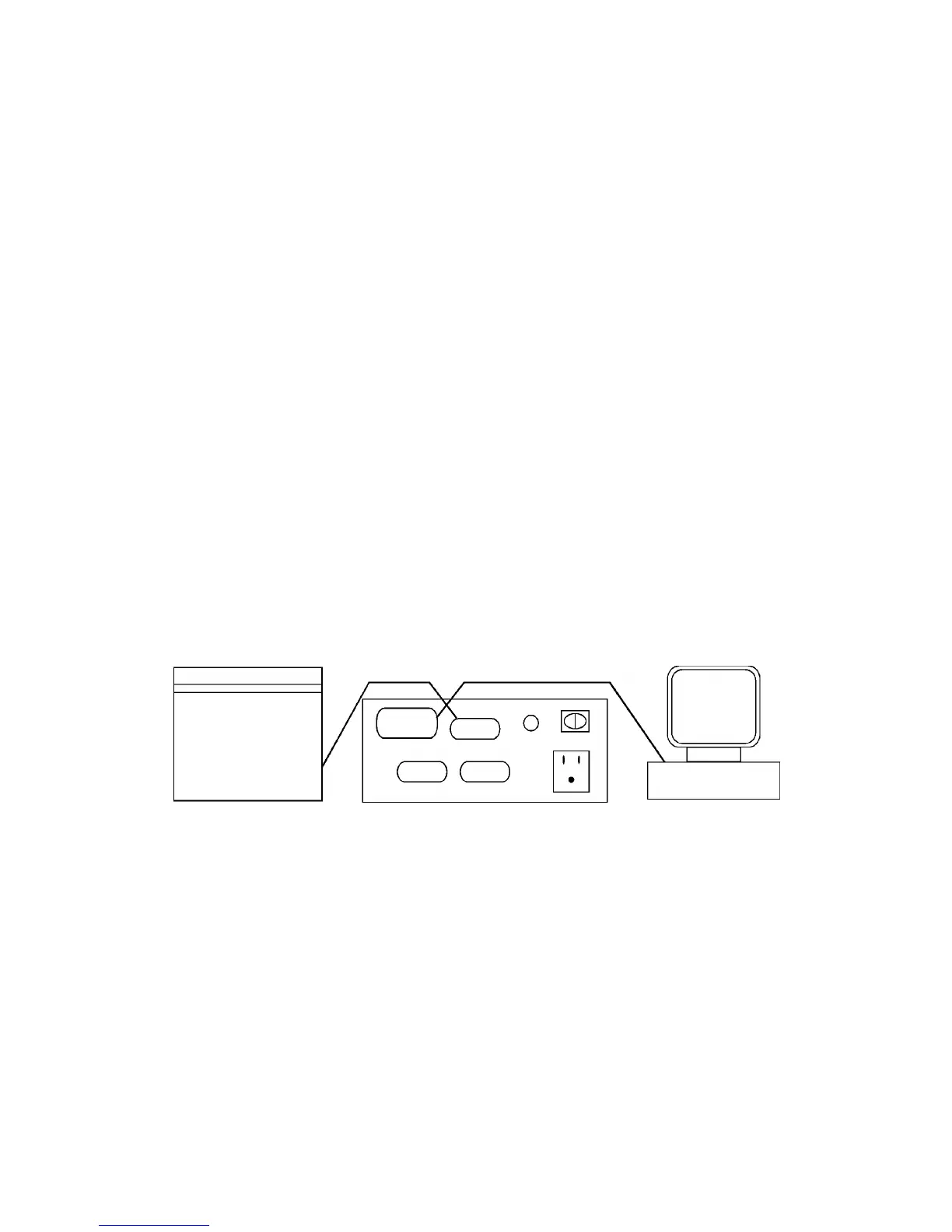

Figure A - Parallel Connection
Personal Computer
Priport
Diagnostic Serial In
AppleTalk
Parallel In Digital Duplicator
VT2105 6-8 FSM
