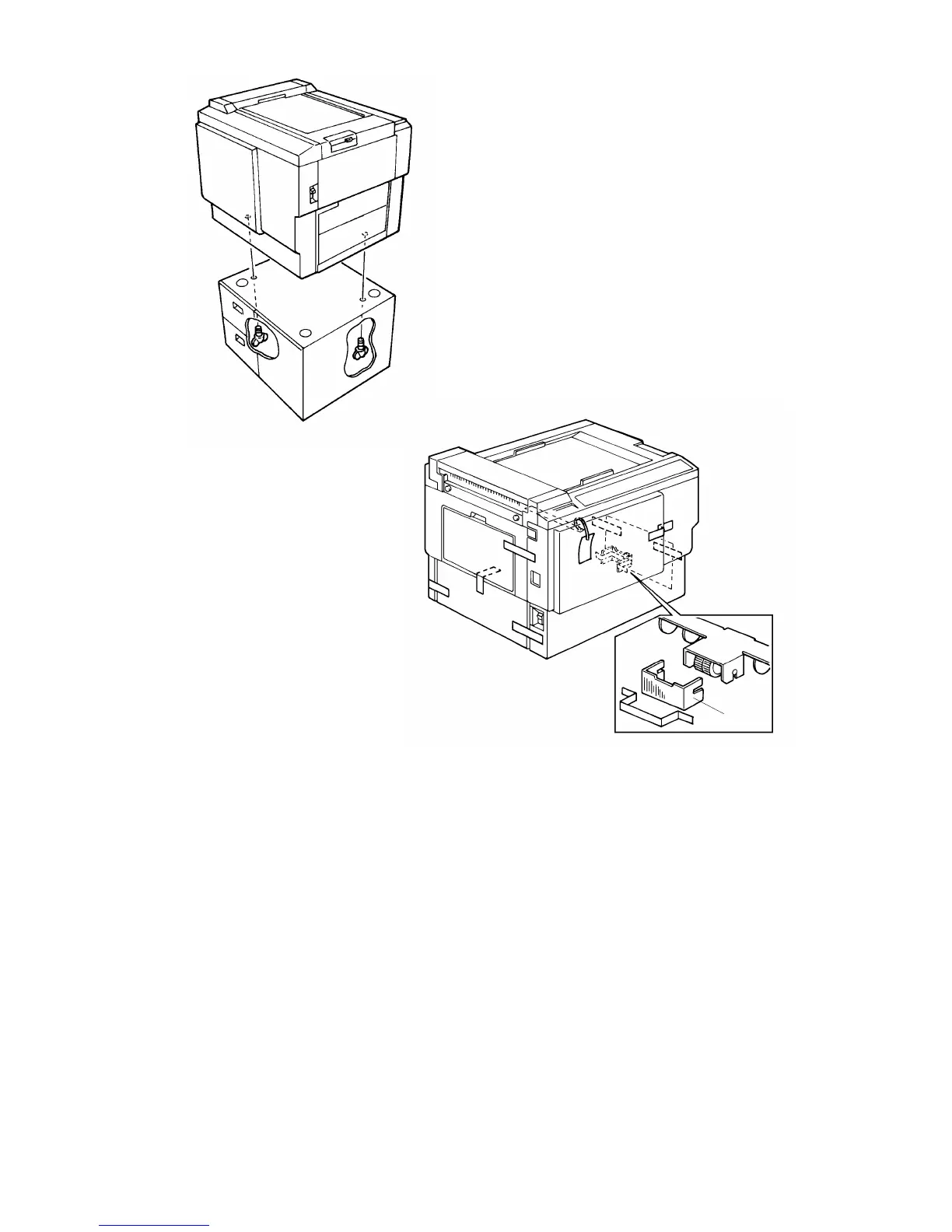

2. Mount the machine on the optional table (2 screws packed with the table).
3. Remove all of the strips of tape securing the covers and units as shown
above.
a. Open the paper feed tray and remove the cushion plate [A] from the
paper feed roller section.
b. Open the master delivery unit and remove the tape securing the paper
delivery guide plate.
[A]
