Duplex Unit (D369)
SM 2-42 D017/D018/D019/D020/D084/D085
2.10.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.
 Before installing the duplex unit, the optional interchange unit (D371) must be
installed.
1. Remove all tapes.

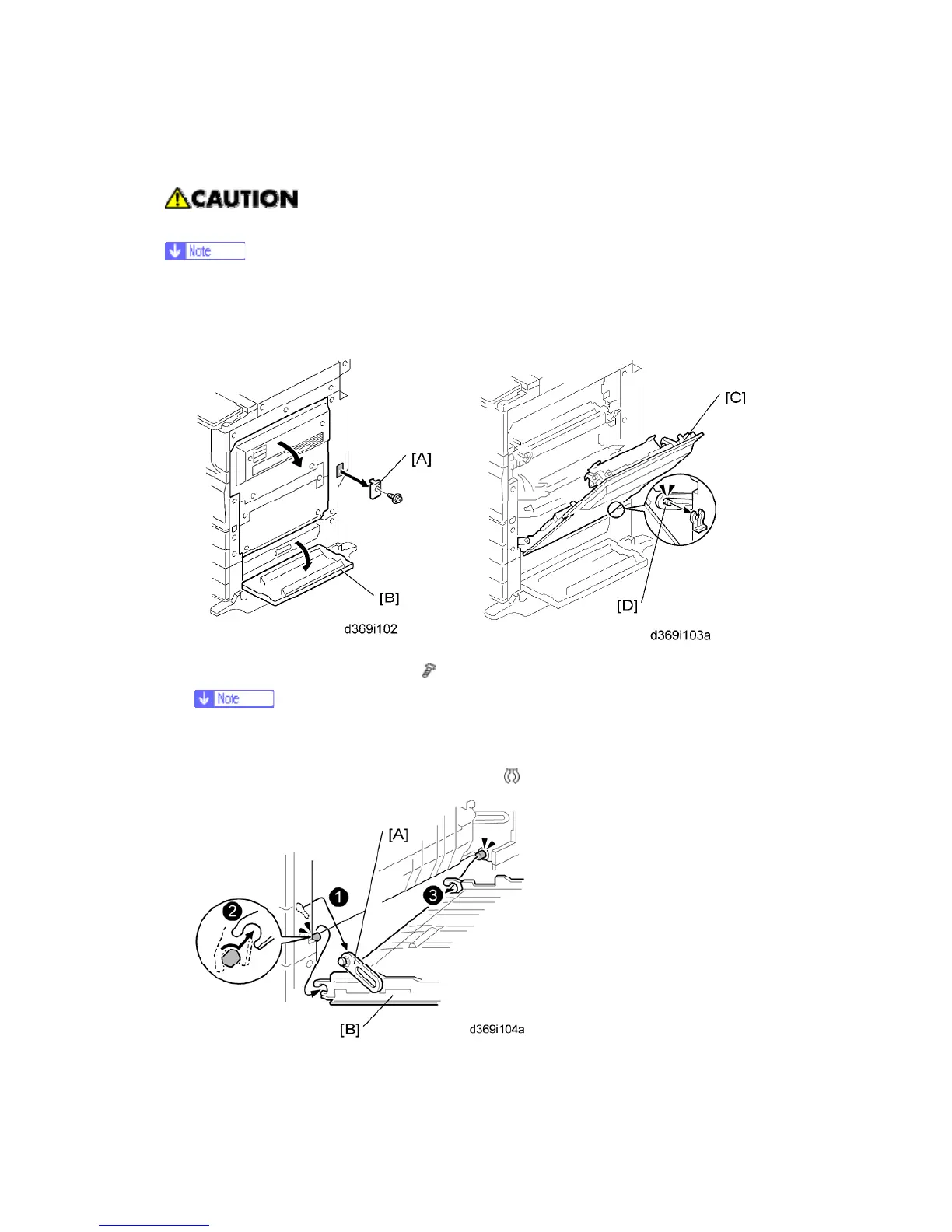

2. Remove the connector cover [A] ( x 1).
 Keep this screw. This screw will be used in step 12.
3. Open the right cover [B] of the optional paper tray unit or LCT and right cover [C].
4. Release the rear link [D] from the right cover (
x 1).
5. Release the front link [A] from the mainframe.
6. Remove the right cover [B].
