Duplex Unit (D369)
D017/D018/D019/D020/D084/D085 2-43 SM
Installation

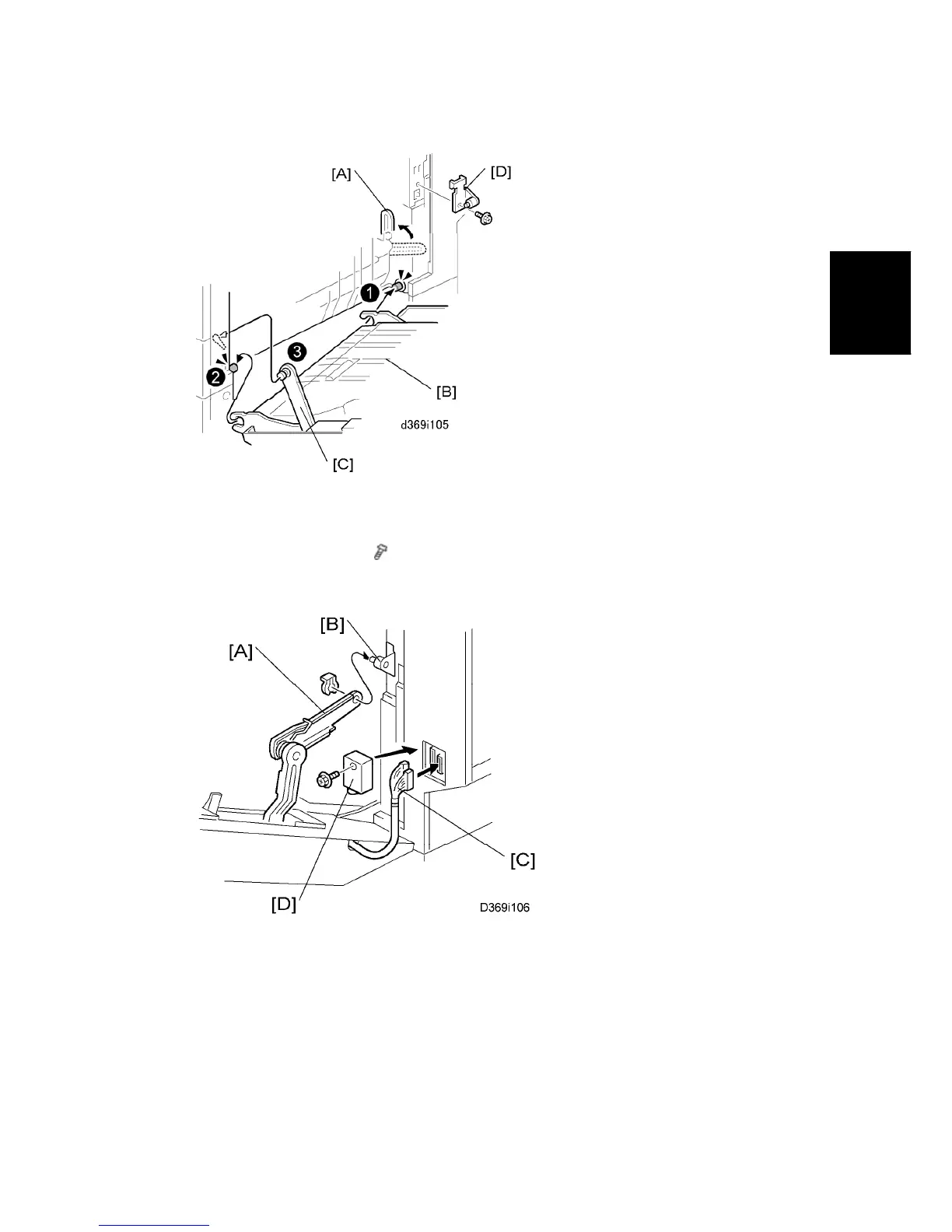

7. Turn up the rear link [A] of the main machine.
8. Install the duplex unit [B].
9. Install the link bracket [D] ( x 1: M3x6).
10. Attach the front link [C] of the duplex unit to the main machine.
11. Attach the link [A] to the shaft [B] and secure it with the clip.
12. Connect the cable [C] and install the connector cover [D] ( x 1).
