Ricoh IM C6500 - Closing the Banner Paper Guide Tray

To Next Page

To Previous Page

D0CMIC1335

D0CMIC1336

Closing the Banner Paper Guide Tray

When neither the LCT nor the wide LCT are installed

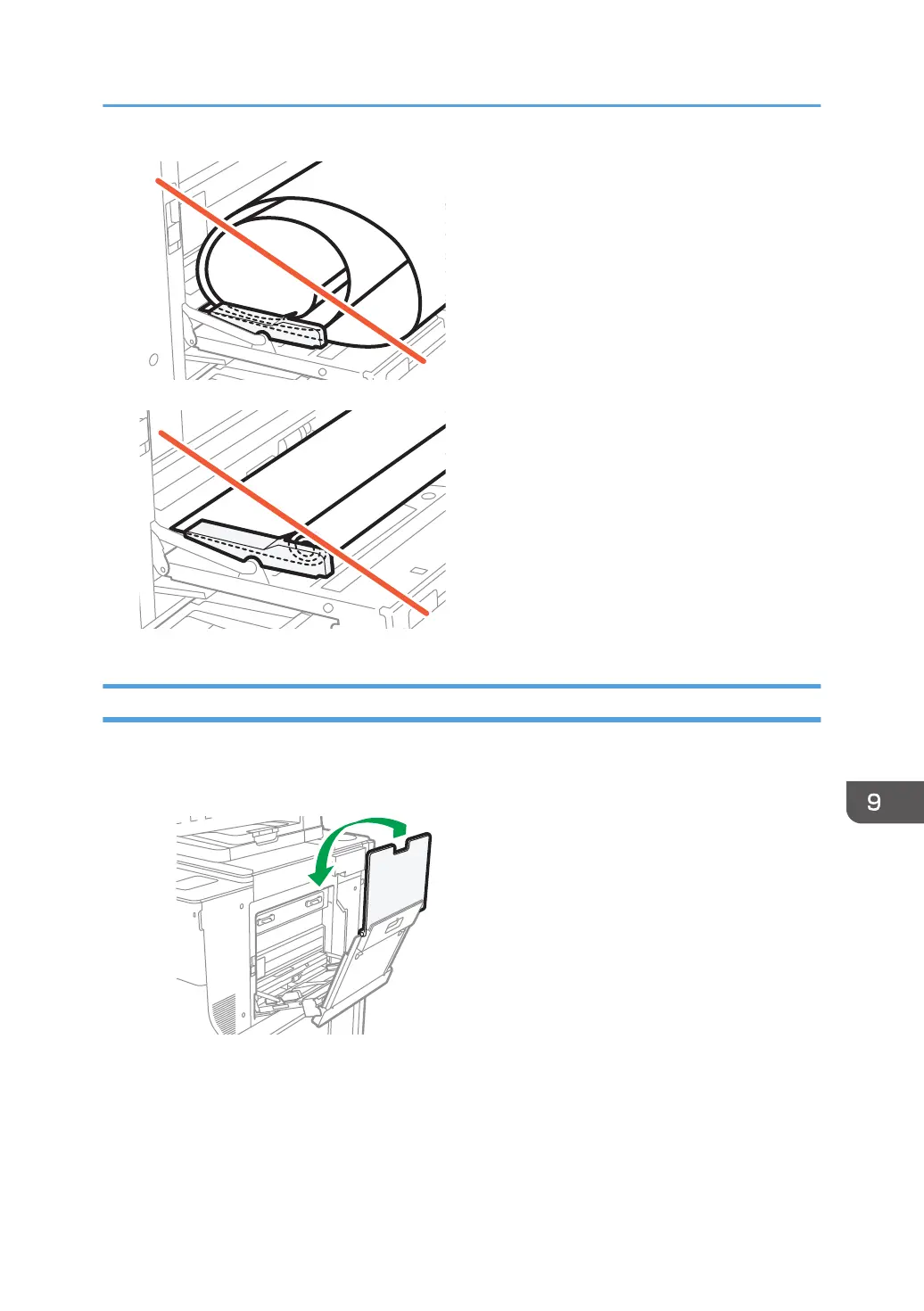

1. Lightly pull up the extender, and then fold it into the machine.

D0CMIC1337

Loading Paper into the Paper Tray

191
