4.3 AC / DC POWER SUPPLY REF 5010-016/-086
Function Description of REF 5010-016
The AC / DC power supply is designed for producing following voltages:
• V1: + 5 V
DC
/ 7 A
• V2: + 15 V
DC
/ 3 A
• V3: - 15 V
DC
/ 1 A
Location
Base plate of Photometer 5010 V5+
Replacement
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.6 Power supply
• see chapter 4.4 Cable power supply / printer
Installation
For installation proceed in reverse order.
See also exploded view, chapter „Dismantling“

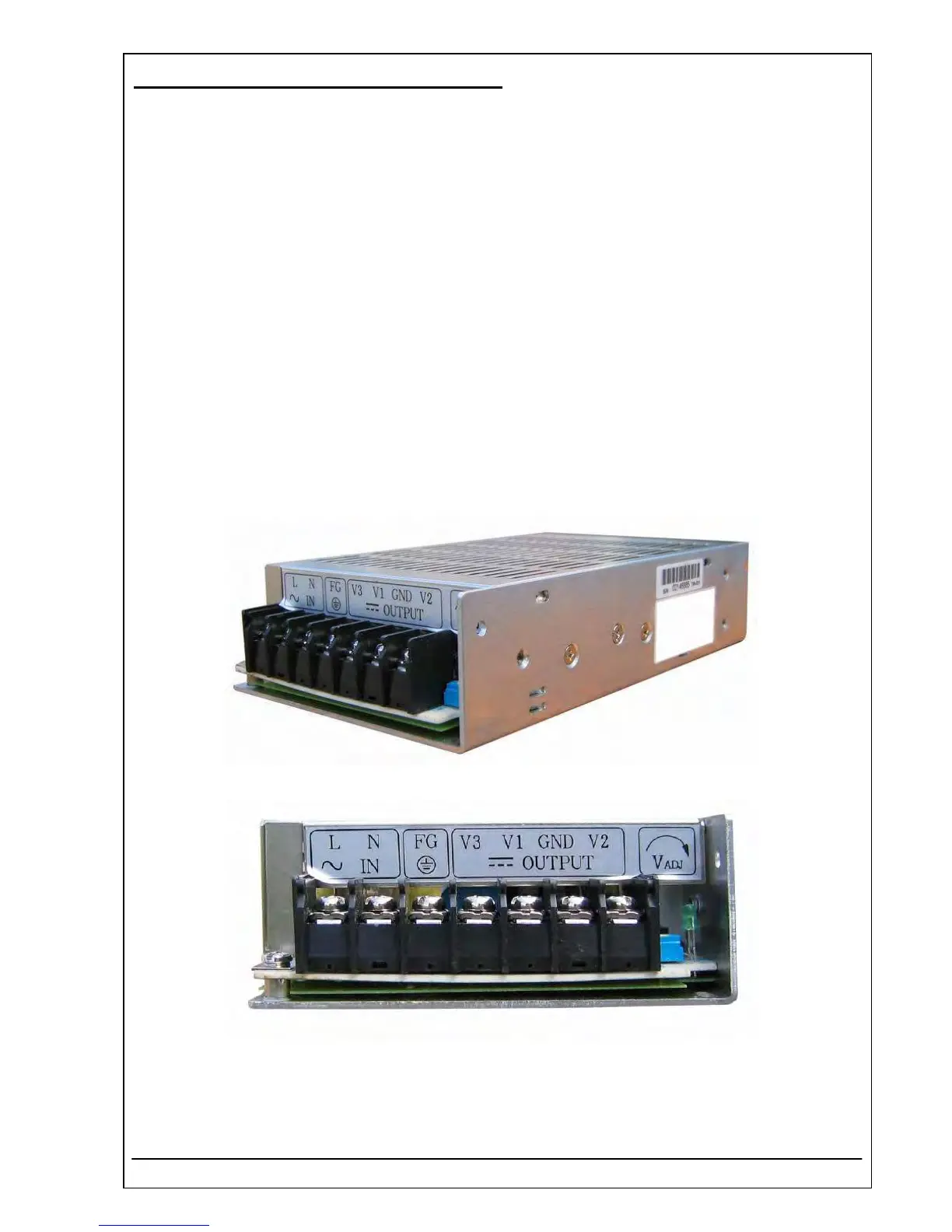

Terminal block
