Riele Photometer 5010 V5+ - Light Barrier Filter Wheel

4.19 LIGHT BARRIER FILTER WHEEL REF 5010-063
Function Description

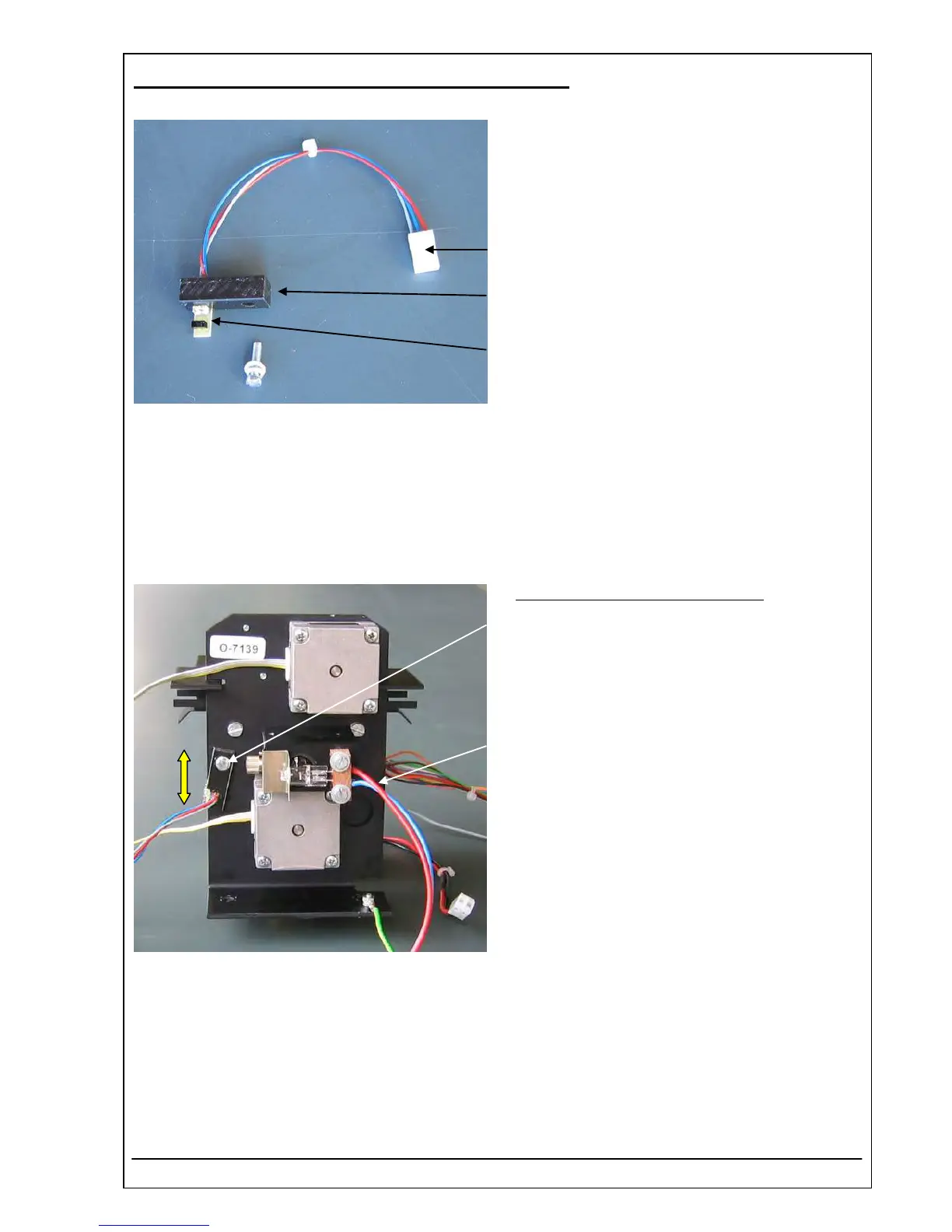

The light barrier is the position control of the filter
wheel. The unit is delivered with a plug.
The plug P5 is connected with the socket ST5 on the
mother board RR-120.
Holder of the light barrier
Light barrier
Location
Optical unit.
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening – item 1, item 2, item 3, item 5
• see chapter 5.5 Optical unit: Filter wheel, motor filter wheel, motor peristaltic pump, light barrier
Adjusting procedure of the light barrier
:
Loosen the cylinder head screw.
Hole on the mounting plate
RIELE BERLIN Photometer 5010 V5+ 4.19.1 11.05.2006
