Riele Photometer 5010 V5+ - Step Motor Pump

4.16 STEP MOTOR PUMP REF 5010-060
Function Description
The peristaltic pump is used for sample aspiration
into the flow-through cell. A step motor drives the
rotor of the pump.
Location
Optical unit
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.3 Base plate
• see chapter 5.5 Optical unit: Filter wheel, motor filter wheel, motor peristaltic pump, light barrier
Installation
For installation proceed in reverse order.
To fit the step motor the cover plate of the working
area needs to be modified.
To remove the cover plate see chapter 5.4.2 –
ASSEMBLING / DISMANTLING.

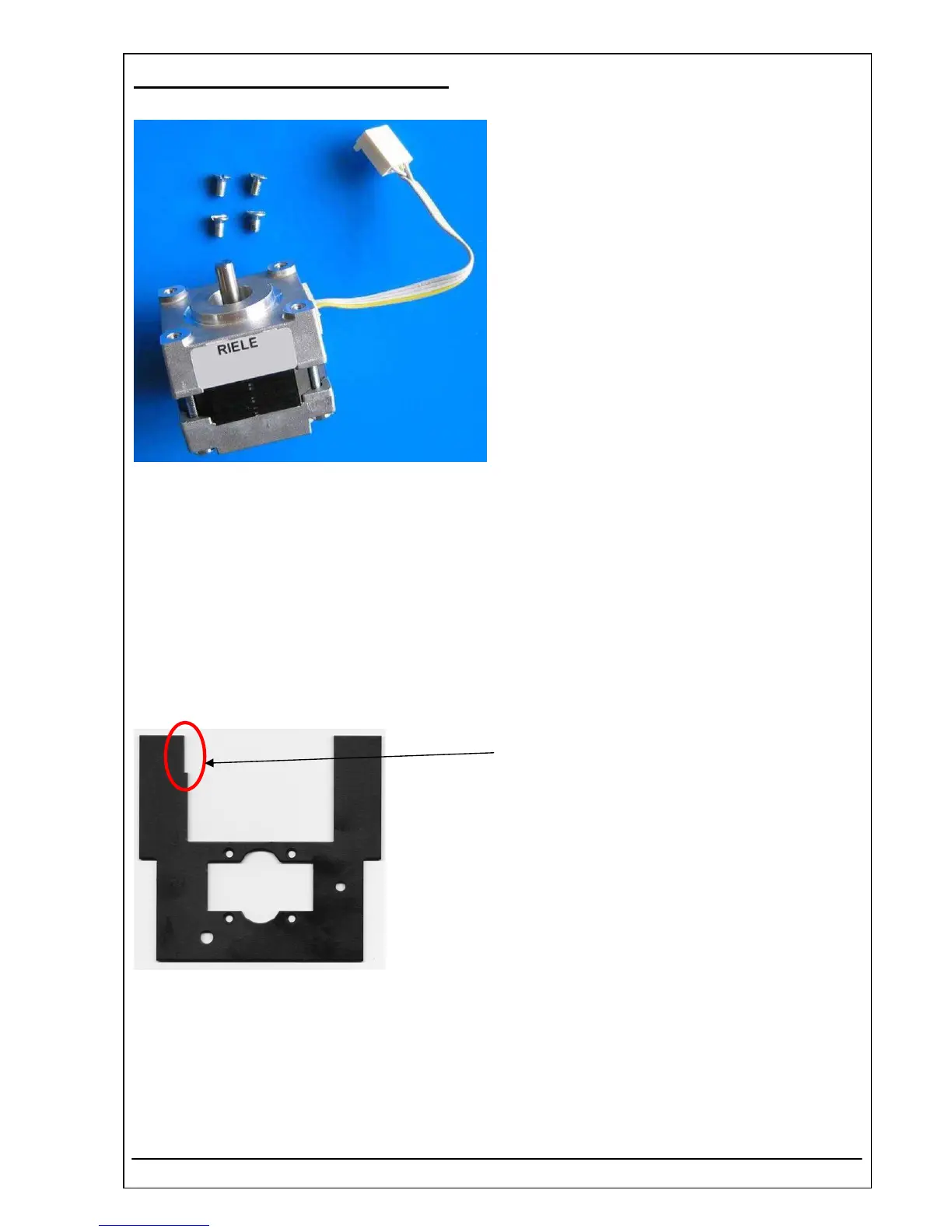

Modified cover plate is part of the step motor spare
part.
RIELE BERLIN Photometer 5010 V5+ 4.16.1 23.07.2013
