Riele Photometer 5010 V5+ - Lamp Holder

4.24 LAMP HOLDER REF 5010-059

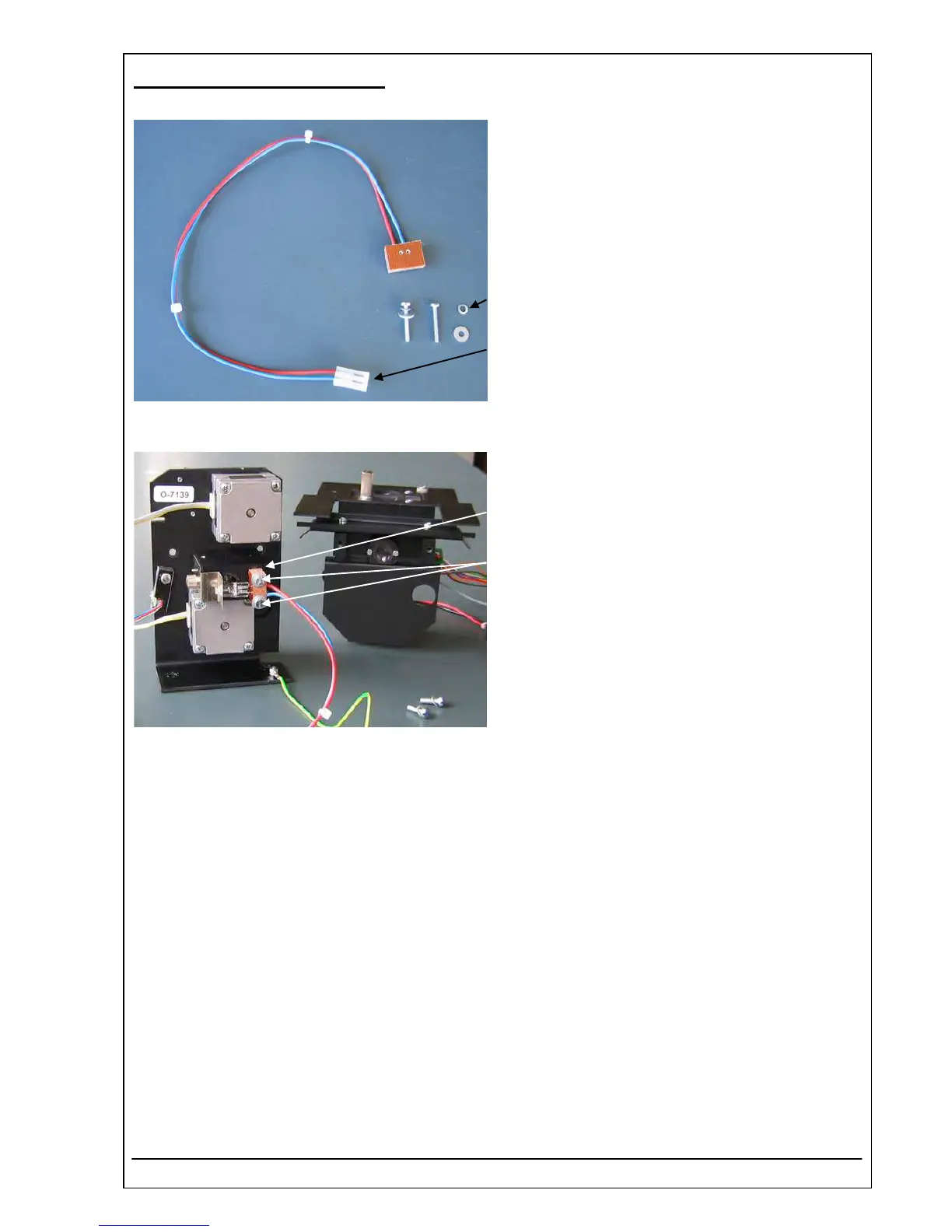

Function Description
The lamp holder is used for fixing the halogen lamp.
Ondular washer
The plug P4 is connected with the socket ST4 on the
mother board RR-120.
Location
Optical unit
Lamp holder
Cylinder head screws with ondular washer
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening – item 1, item 2, item 3, item 5
Remove halogen lamp. For further information see chapter 4.12 – Halogen lamp. Unplug P4. Unscrew the two
cylinder head screws.
Installation
For installation proceed in reverse order.
RIELE BERLIN Photometer 5010 V5+ 4.24.1 12.05.2006
