Riele Photometer 5010 V5+ - Unit Cuvette Adaptor

4.14 UNIT CUVETTE ADAPTOR REF 5010-068
Function Description
A power Darlington transistor TIP 132 is used as a
heating unit.

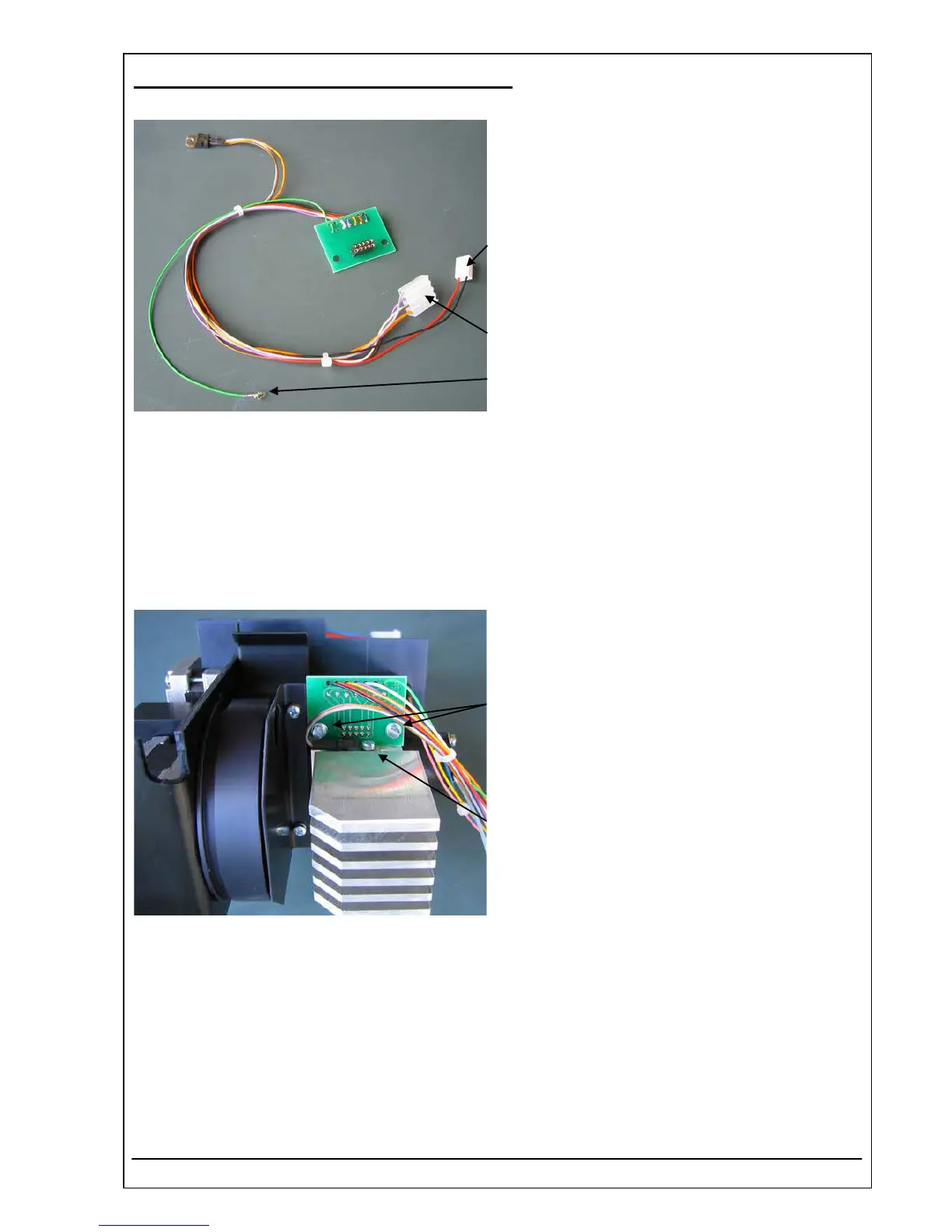

The unit contains a transistor TIP 132, the PCB
RR-126 cuvette adaptor, cables and two plugs P20
and P21.
The plug P21 is connected with the socket ST21 on
the mother board RR-120.
The plug P20 is connected with the socket ST20 on
the mother board RR-120.
Lead with crimped connector belonging to plug
P2 pin 4 (type of adaptor)
Location
Optical unit
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.3 Base plate
Unscrew the two cylinder head screws of the
PCB RR-126.
Unscrew the cylinder head screw of the transistor.
Installation
For installation proceed in reverse order.
RIELE BERLIN Photometer 5010 V5+ 4.14.1 10.05.2006
