4.11 FILTER WHEEL
RIELE BERLIN Photometer 5010 V5+ 4.11.1 09.04.2009
Function Description
The filter wheel has nine filter positions called F1 to F9.
Six filter positions are equipped with optical filters of standard wavelengths.
The wavelengths are: 340 nm, 405 nm, 492 nm, 546 nm, 578 nm and 623 nm
Location
Optical unit
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.3 Base plate
• see chapter 5.5 Optical unit: Filter wheel, motor filter wheel, motor peristaltic pump, light barrier
Installation
For installation proceed in reverse order.

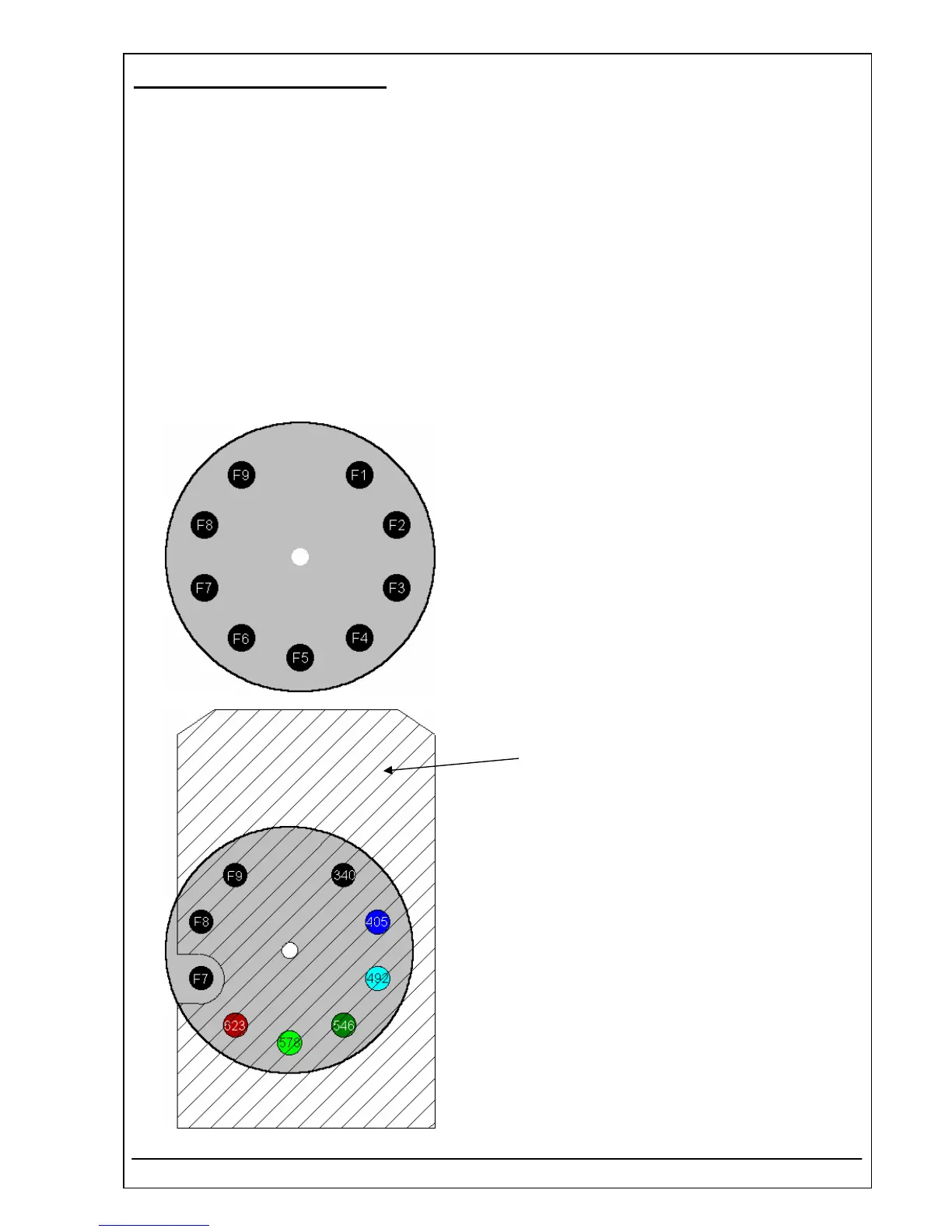

Filter wheel with nine filter positions
called F1 to F9
Filter wheel equipped with interference
line filters of standard wavelengths
Motor mounting plate
