Riele Photometer 5010 V5+ - Step Motor Filter Wheel

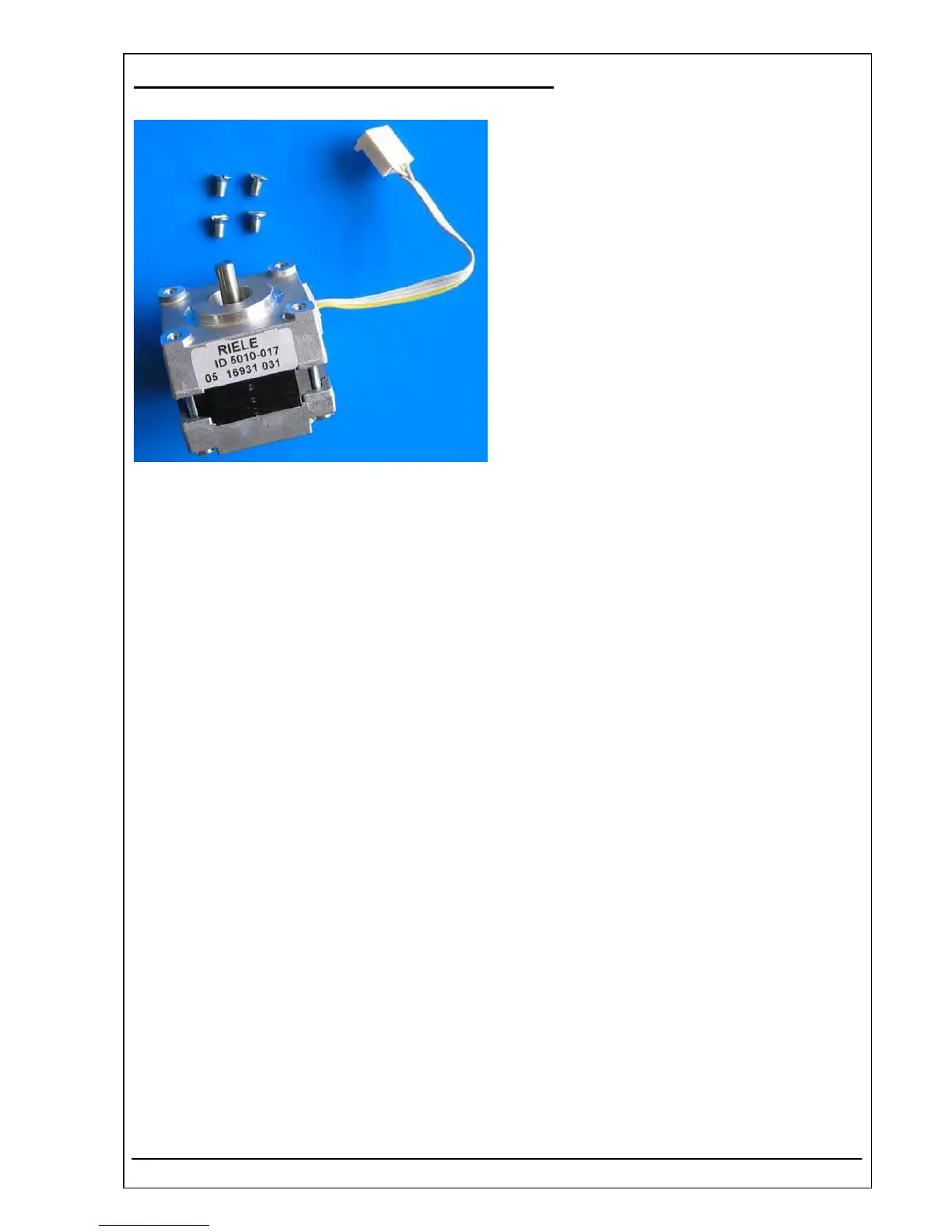

4.18 STEP MOTOR FILTER WHEEL REF 5010-061
Function Description
The step motor is used for driving the filter wheel.
Location
Optical unit
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.3 Base plate
• see chapter 5.5 Optical unit: Filter wheel, motor filter wheel, motor peristaltic pump, light barrier
Installation
For installation proceed in reverse order.
RIELE BERLIN Photometer 5010 V5+ 4.18.1 10.05.2006
