4.35 PRINTER MECHANISM 8NAD REF 5010-052
Function Description

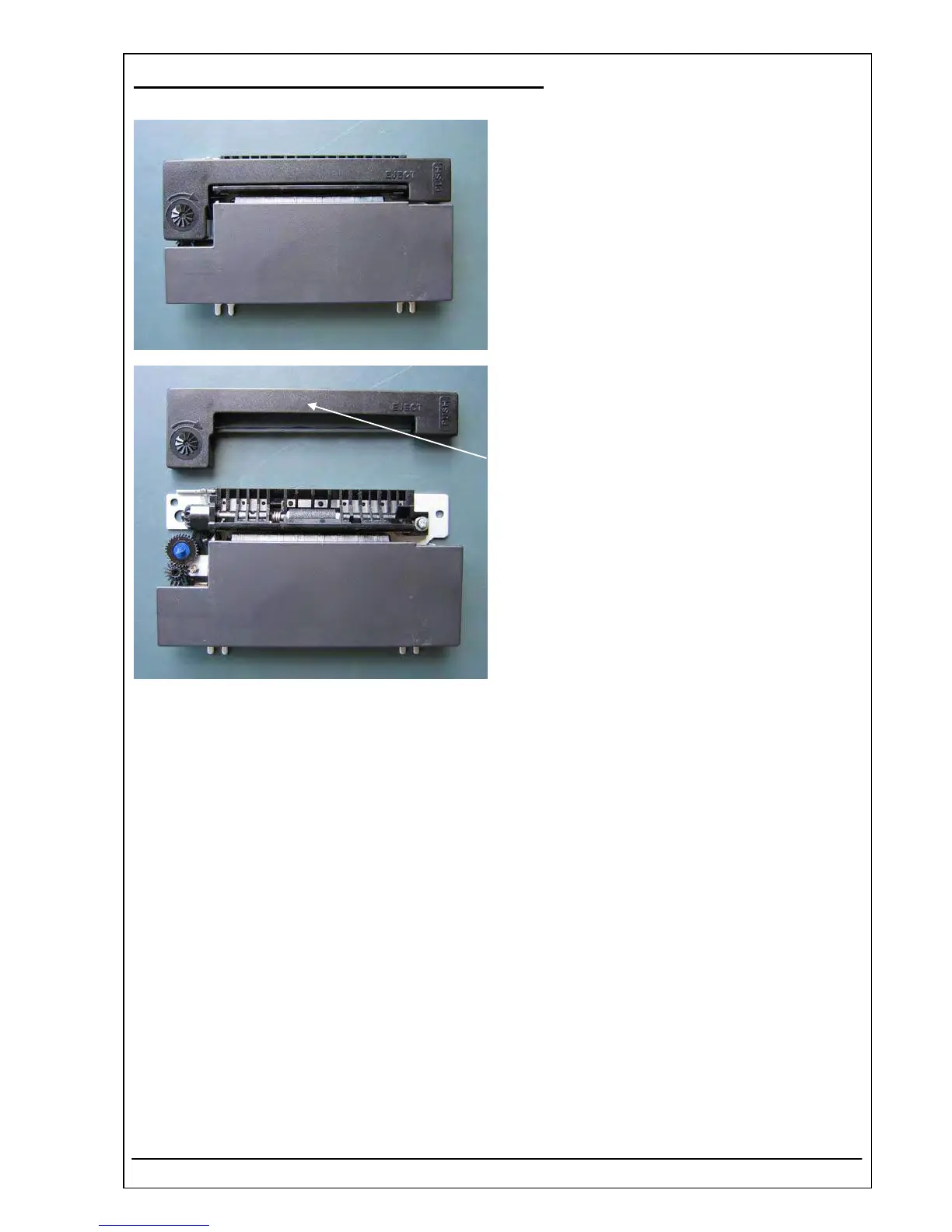

The printer is shown with an inserted ribbon.
Printer ribbon REF 1010735001 or REF 0745235001
Location
Top case
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
Remove top cover for printer, paper and ribbon.
Disconnect 18-pin plug CN6 from printer controller 8NAD (REF 5010-053).
Loosen 2 front screws in the hollows and remove the other 2 screws.
Remove printer mechanism.
RIELE BERLIN Photometer 5010 V5+ 4.35.1 15.05.2006
