4.10 OPTICAL UNIT
Function Description

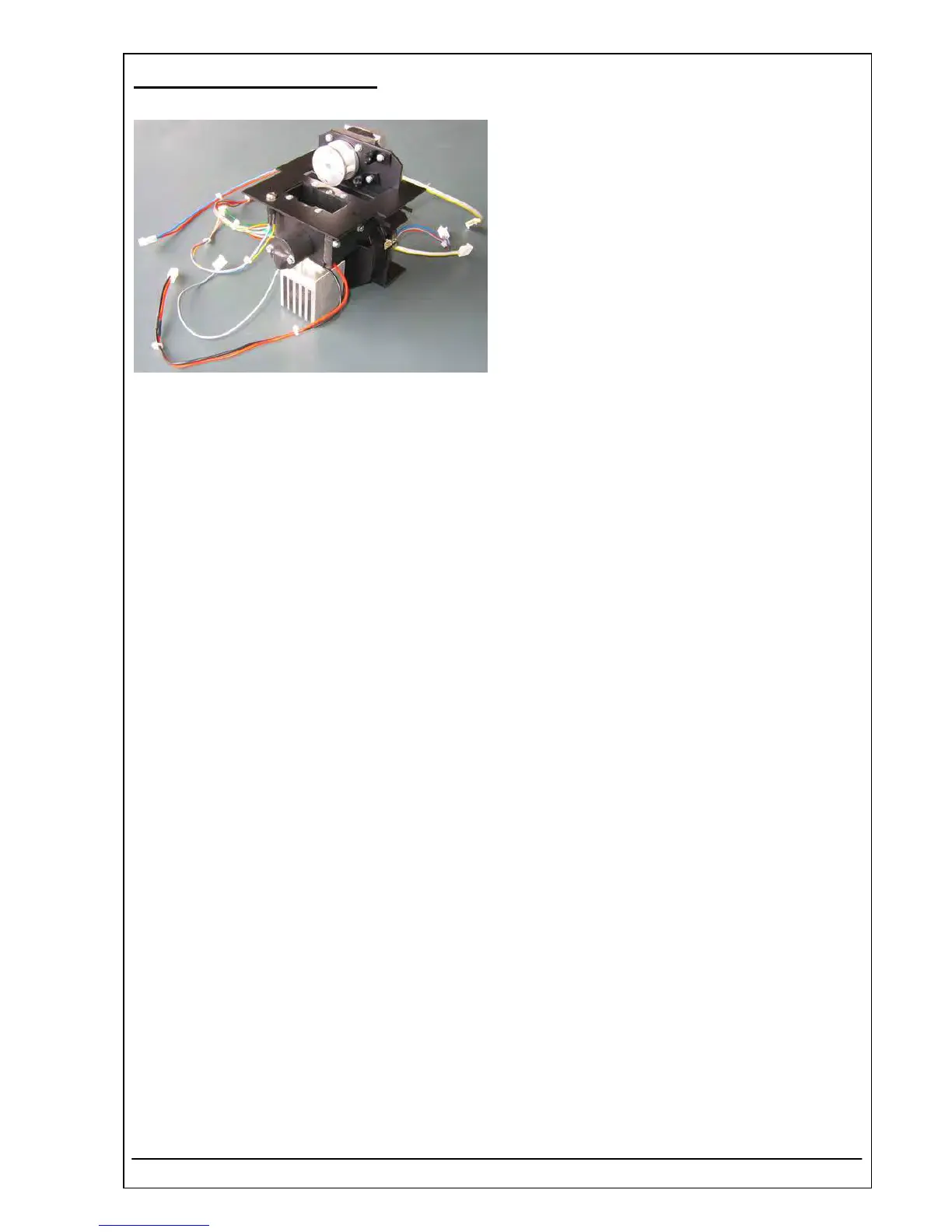

Optical unit
The optical unit consists of the following components:
• Filter wheel with filters
• Step motor filter wheel
• Light barrier filter wheel
• Step motor pump
• Pump wheel
• Connector bubble detector
• Halogen lamp
• Unit photodiode
• Lenses
• Unit Peltier element
• Unit cuvette adaptor
Location
Base plate
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.3 Base plate
Installation
For installation proceed in reverse order.
