4.15 UNIT PELTIER ELEMENT REF 5010-062
Function Description
An Peltier element is an electrical element based on the Peltier effect designated after Jean Peltier, which
produces a temperature difference between two plates with current flow. The current pumps warmth from a
side on the other one and produces a temperature difference between the plates. The element is used to cool
down the cuvette, cuvette adaptor and cuvette compartment.

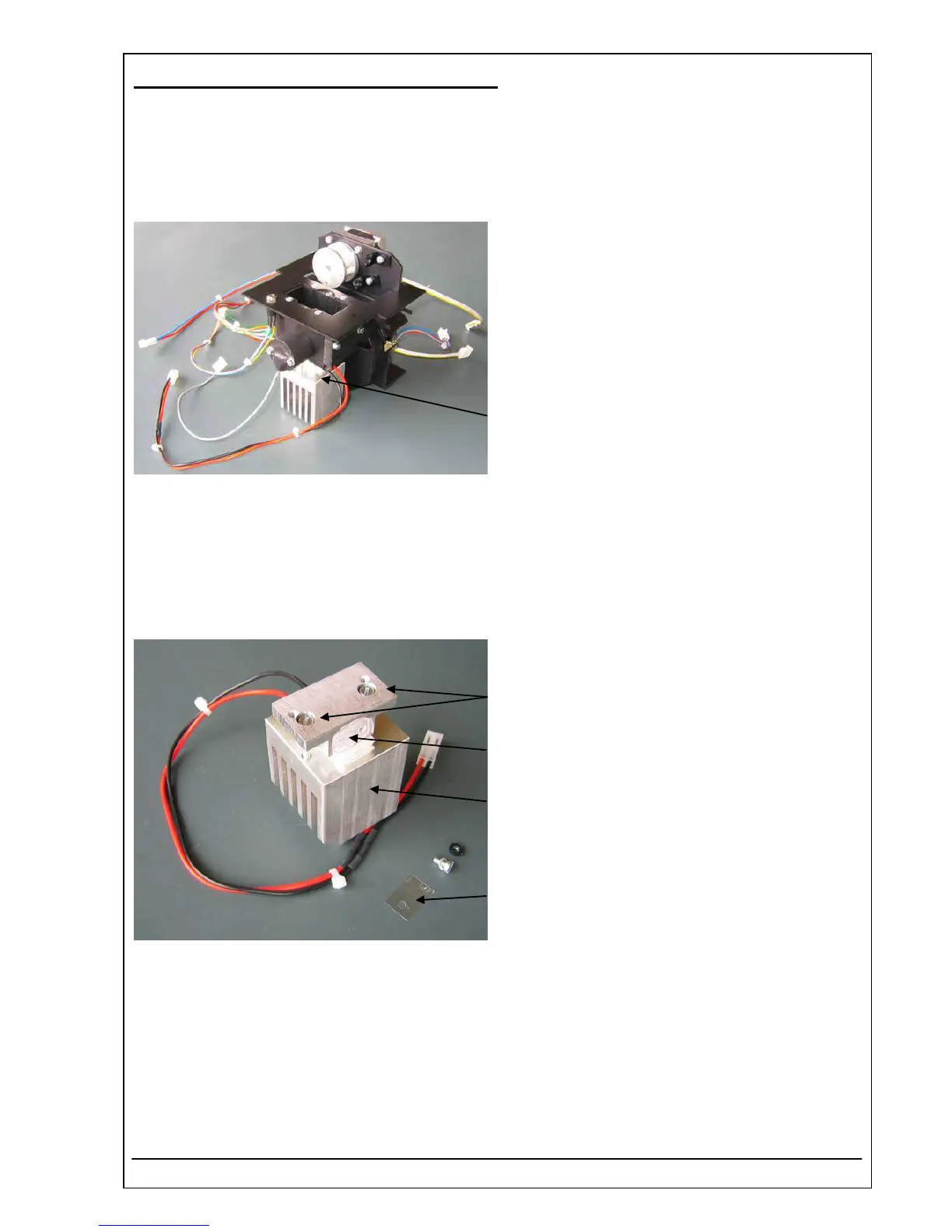

Location
Optical unit
Unit Peltier element
Replacement
The Photometer 5010 V5+ has to be dismantled:
• see chapter 5.1 Opening
• see chapter 5.2 Separating top case and bottom case
• see chapter 5.3 Base plate
• see chapter 5.4 Optical compartment, peristaltic pump, heating unit
Two clamp screws are glued.
Heat conducting paste
Heat sink
Mica washer
Installation
For installation proceed in reverse order.
RIELE BERLIN Photometer 5010 V5+ 4.15.1 27.04.2006
