4.3 AC / DC POWER SUPPLY REF 5010-016/-086
Installation notes
• Cable with line filter (brown, black) and ground connection cable (yellow/green) are shown above only
for the sake of completeness and are not included in delivery.
• In case of servicing a device previous to SN 8002 be sure that the cable PCB motherboard P23 / PCB
printer controller CN2 has been replaced by power supply cable (REF 5010-077) as described in
chapter 4.4.

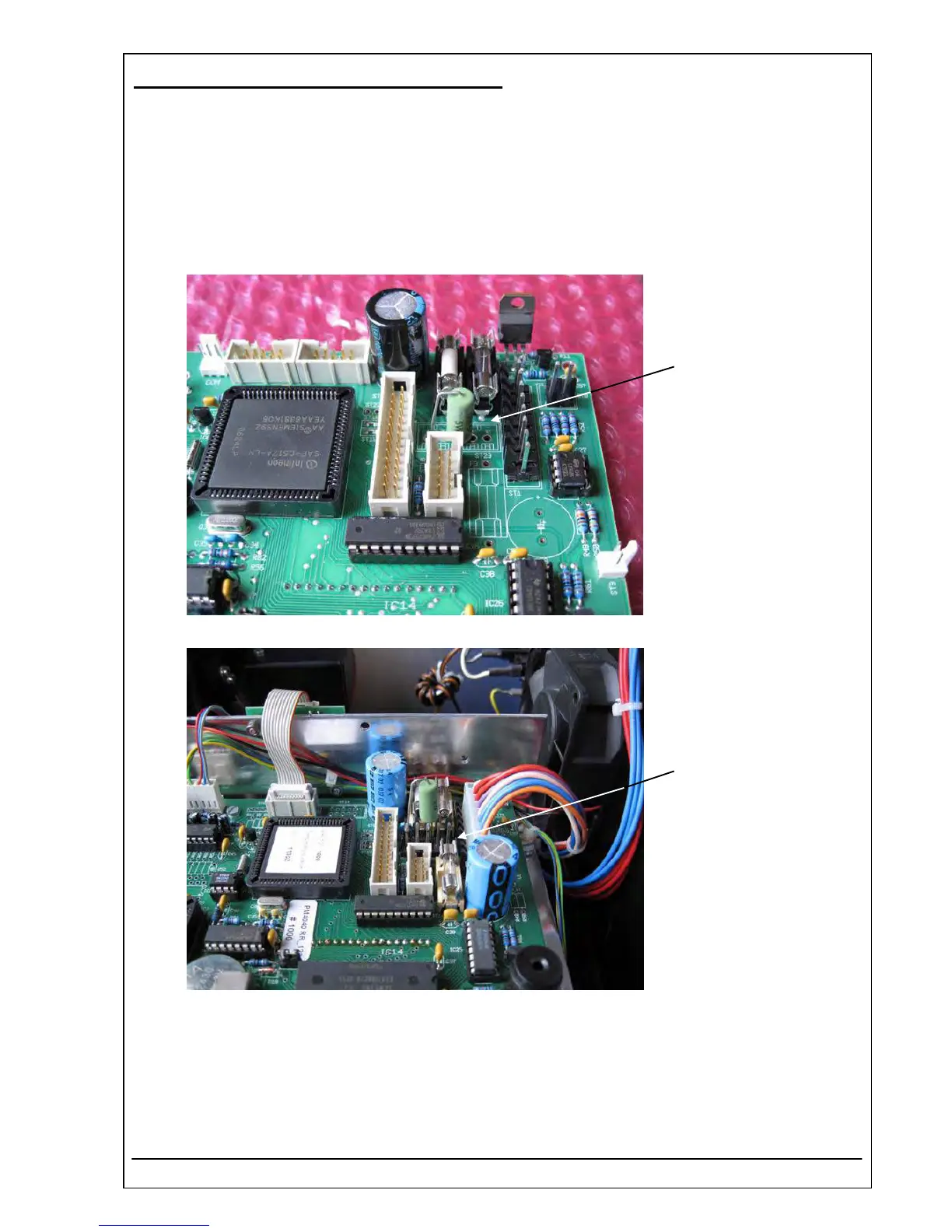

• A 15R / 5W wirewound resistor must be soldered at ST23 between pins 1 and 3 as shown below:
Devices from
SN 8002 without
p
in heade
r
.
Devices up to
SN 8002 with
pin header.
• After installing AC / DC power supply it is strongly recommended to update to the newest operating
system version (see Operating Instructions Photometer 5010, chapter 7.2.5.4).
