4.11 FILTER WHEEL
RIELE BERLIN Photometer 5010 V5+ 4.11.4 09.04.2009
Put the filter into the corresponding hole
of the filter wheel.
If the filter has only one reflecting
surface, this reflecting surface must be
judged to the light source.
If the filter is marked with an arrow it
shows the direction of the light.
The Seeger ring can loosely be inserted
into the hole in the filter wheel.

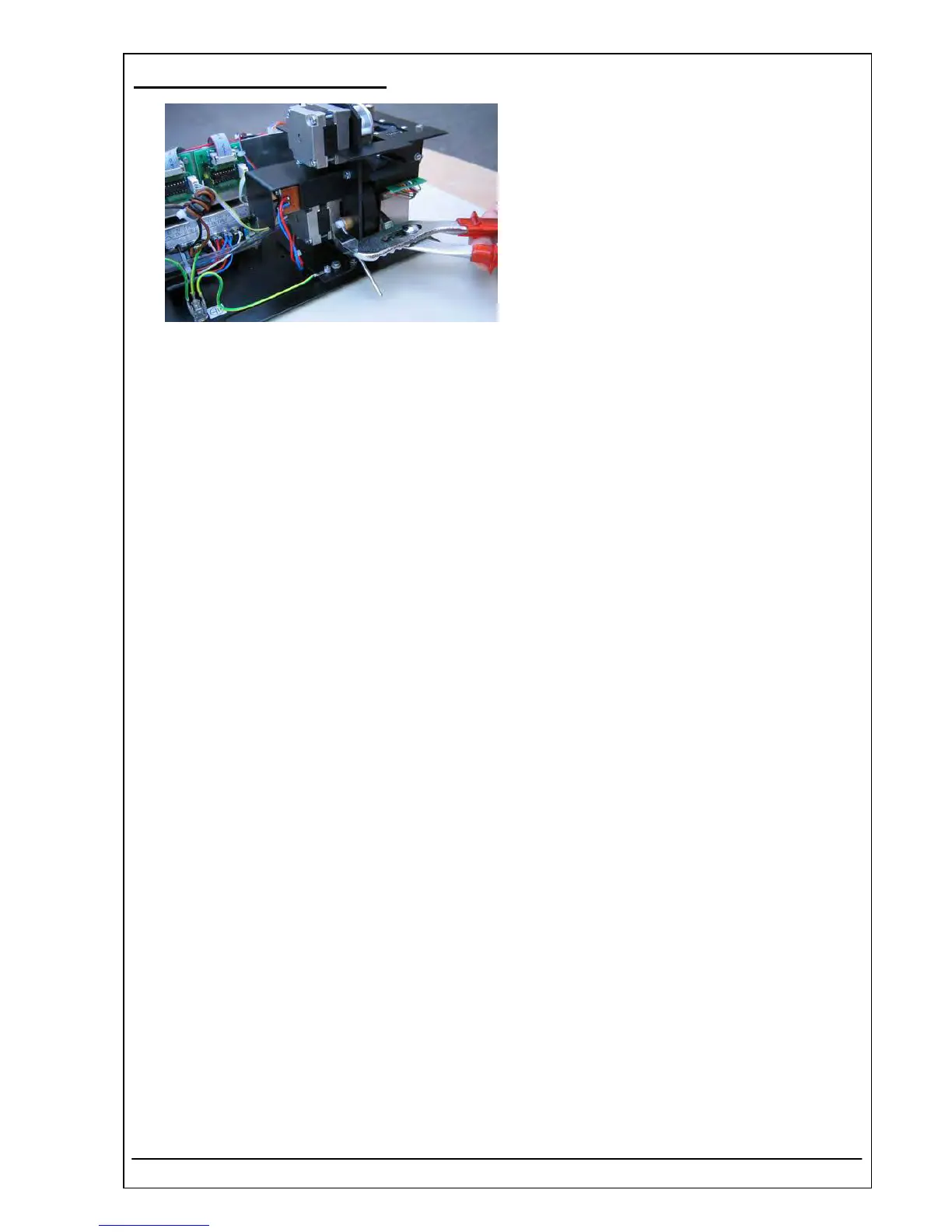

With the tool B (left illustration) and a
pipe wrench the filter and the Seeger ring
can be fixed.
