4.40 PCB RR-120 MOTHERBOARD Layout d REF 5010-120
RIELE BERLIN Photometer 5010 V5+ 4.40.27 04.08.2008
Attention! The following parts of the circuit diagrams are not equipped on the motherboard.
Circuit diagram page 4.40.23
P1 Potentiometer 10K
Attention! The following parts of the circuit diagrams are used with different values.
Circuit diagram page 4.40.23
R13 Resistor 4R7
Circuit diagram page 4.40.24
R30 Resistor
in case of using 12 mm interference filters 470K or
560K
in case of using 10 mm interference filters 1M
R40 Resistor
in case of using 12 mm interference filters 470K or
560K
in case of using 10 mm interference filters 1M
C23 Capacitor 680 pF or
470 pF or
2200 pF
Description of sparepart

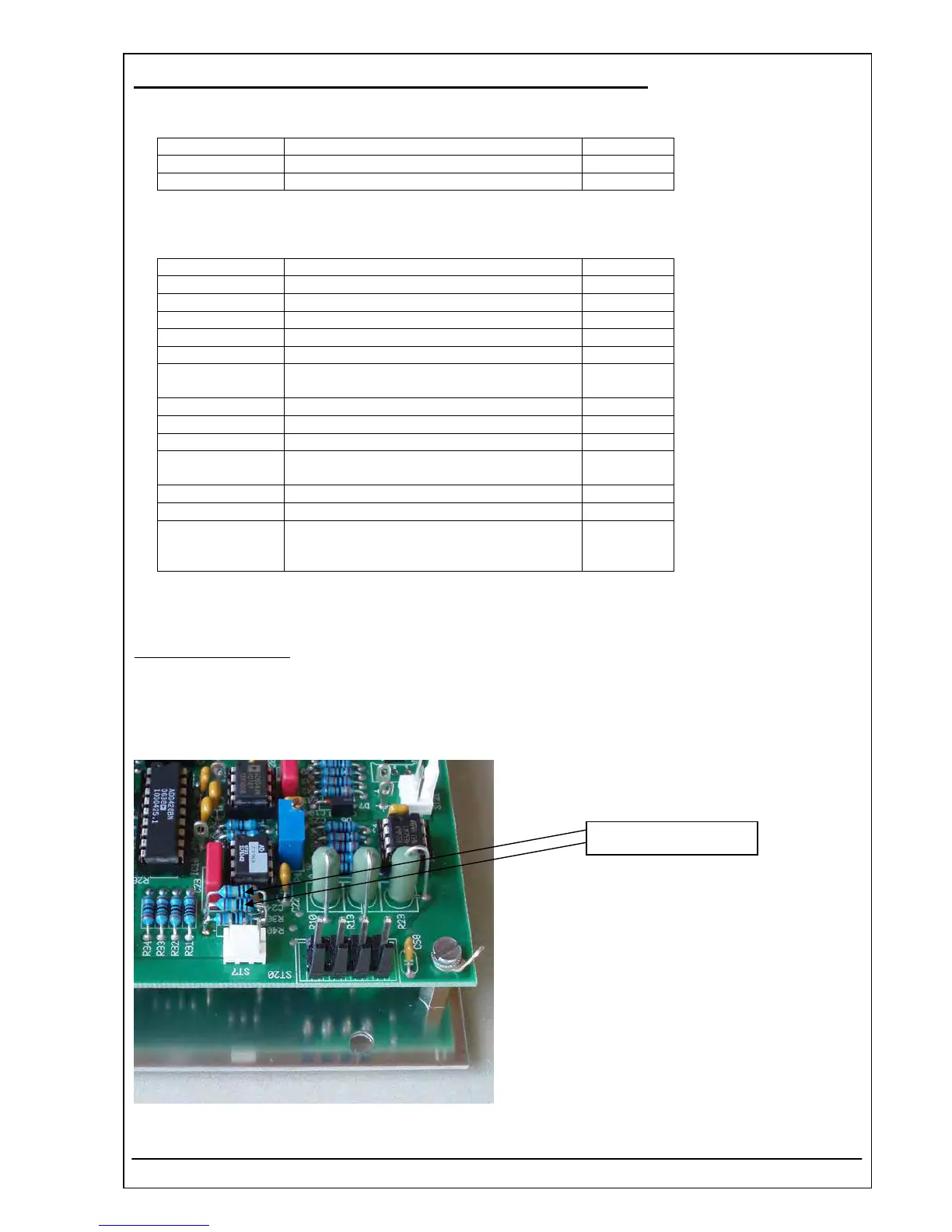

The resistors R30 and R40 are equipped with two 1MOhm resistors in parallel circuit. This configuration
results in an effective resistor of 500K.
If the board which has to be replaced is equipped with 1M resistors:
One of both R30 and R40 has to be removed by side cutting pliers.
two 1Mohm resistors
