ROBOTAPE 50 CFA
3.3. SAFETY DEVICE DESCRIPTIONS
T
he fi
g

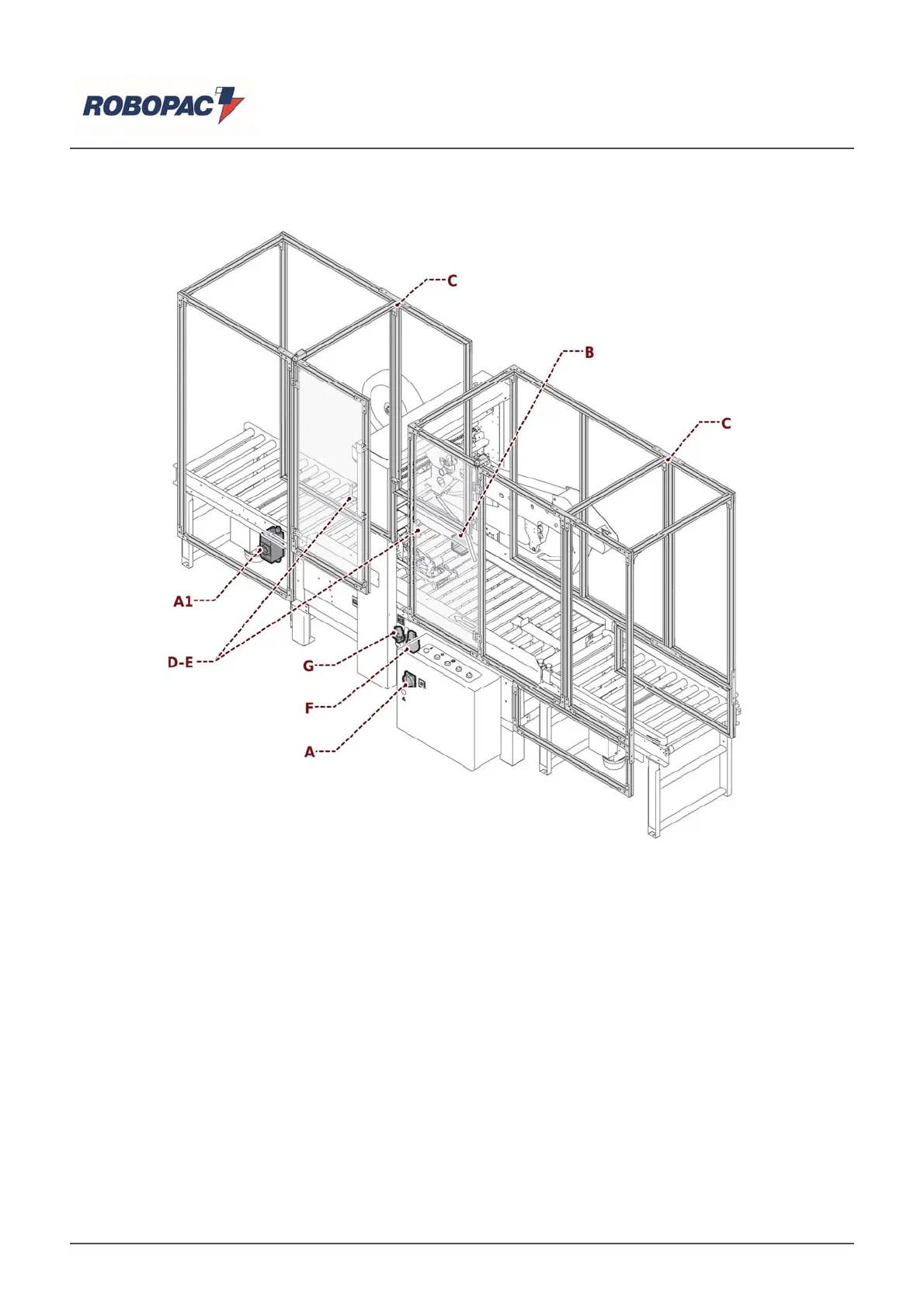

ure shows the
p
ositionin
g
of the devices on board of the machine.
A-A1) Main disconnecting switch (lockable): used to activate and deactivate the machine's electrical power
supply.
It comes with a
p
adlock to
p
revent unauthorised
p
ersonnel from activatin
g
the
p
ower su
pp
l
y
.
B) Emergency button; the machine stops immediately when this button is pressed in emergency
situations.
T
o reset, rotate the button in the direction indicated b
y
the arrow.
C) Fixed
g
uard: outside structure which
p
revents the o
p
erator accessin
g
.
D-E) Interlocked mobile guard: allows the operator to access the interior of the operating area.
It is a door associated with an electric interlock device. Upon opening the machine stops immediately.
Its restart is onl
y
p
ossible u
p
on closin
g
of the door and restorin
g
of the c
y
cle.
F) General exhaust solenoid valve: closes the compressed air inlet line when the machine is not electrically
p
owered or when it is sto
pp
ed in emer
g
enc
y
conditions.
G) General disconnecting switch (can be padlocked): used to activate and deactivate the pneumatic
su
pp
l
y
. Can be
p
adlocked and
p
revents the
p
neumatic activation b
y
unauthorised
p
ersons.
