English
- 3 -
Chapter 2
TECHNICAL INFORMATION
2.1. DESCRIPTION OF THE TAPING UNIT
The taping unit in question serves to tape cardboard boxes of pre-dened
sizes.
Model T50 uses tapes up to 50 mm wide.
Model T75 uses tapes up to 75 mm wide.
It can be installed on any cardboard box taping machine predisposed for
such a unit.
It is also possible to adjust the length of the front ap as needed.

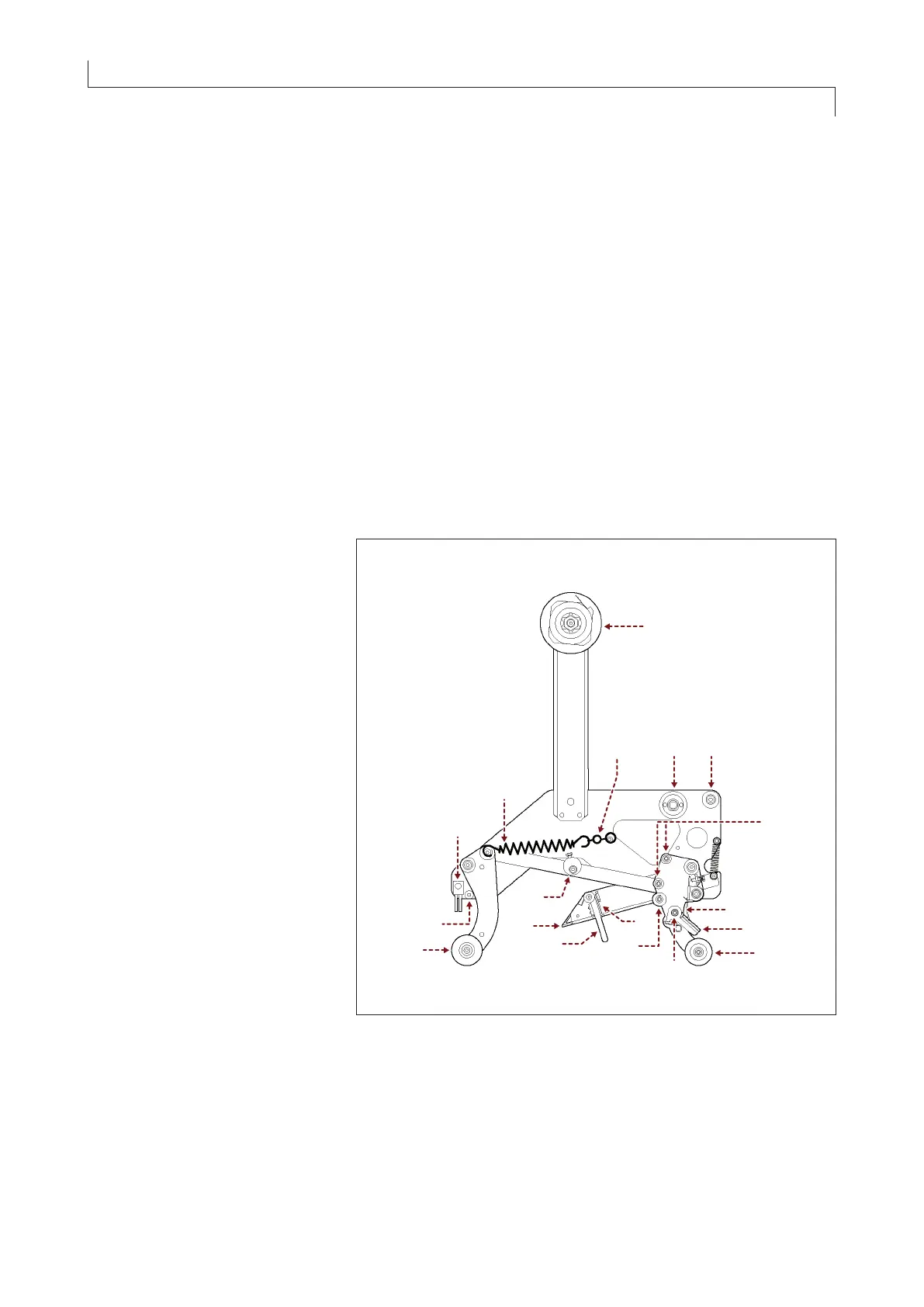

1) Roll hub.
2) Spring hooking rings.
3) Knurled nonreturn roller.
4) Return roller.
5) Recovery roller.
6) Tape shaper sheet.
7) Tape contrast sheet.
8) Infeed roller.
9) Blade.
10) Knurled transmission roller.
11) Smooth transmission roller.
12) Adjusting cam.
13) Cut adjusting guide.
Note : To be removed for 50 mm
seams.
14) Blade protection.
Note: Not present in the T30/50
version.
15) Outfeed roller.
16) Stop pin.
17) Brush.
18) Main spring.
2.2. DESCRIPTION OF COMPONENTS
